SHOE HAND BRAKE FORD TYPE
WO10324

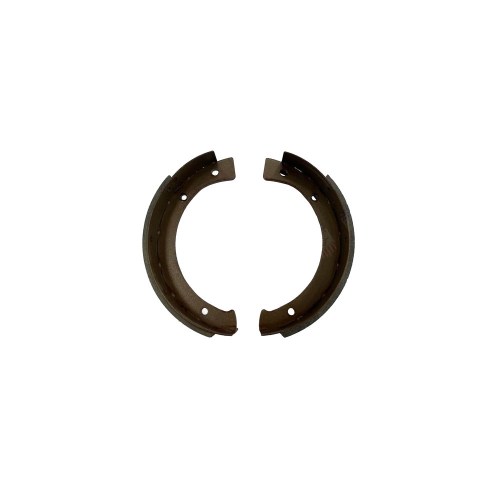

Handbrake Shoe Ford-type
Set of 2 shoes for internal handbrake
Replacement handbrake shoes for the internal shoe-type handbrake mechanism fitted in the transfer case. These shoes are often worn or saturated with oil from the transfer case after years of use and then require replacement for a properly functioning handbrake.
|
Type Internal expanding shoe |
Fitting In handbrake drum on transfer case |
|
Application See product categories |
Set contents 2 handbrake shoes with lining |
Features
- Internal expanding shoe type handbrake
- Fits in ribbed drum at rear of transfer case
- Complete with attached brake lining
- Replaces worn or oil-saturated originals
- Set of 2 shoes
★ Quality reproduction for restoring handbrake function. Essential component for safe parking on slopes.
Application
Suitable for vehicles equipped with Ford-type internal handbrake fitted in the transfer case. Consult the product categories for exact applications.
Installation notes
The shoes sit in the ribbed drum at the rear of the transfer case. When fitting, check for oil leakage from the transfer case — saturated shoes lose their braking effect. If in doubt, also replace the return springs.
Compatibility
Please note: there are two different handbrake systems — the early external band type and the later internal shoe type. This product is exclusively for the internal shoe type. Check your vehicle before ordering.
Historical context
The internal shoe-type handbrake mechanism was introduced on later WWII Jeeps and remained in use on the civilian CJ models and M38. The handbrake acts on the intermediate shaft and holds the vehicle via both rear axles.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
ALL_CATEGORIES : HAND BRAKE CJ2A, HAND BRAKE CJ3A, HAND BRAKE M38, HAND BRAKE CJ3B
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Ford GPW | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
| CJ series | |
| Jeep CJ-2A | 1945, 1946, 1947, 1948, 1949 |
| Jeep CJ-3A | 1949, 1950, 1951, 1952, 1953 |
