GROMMET OIL FILTER BRACKET JEEP

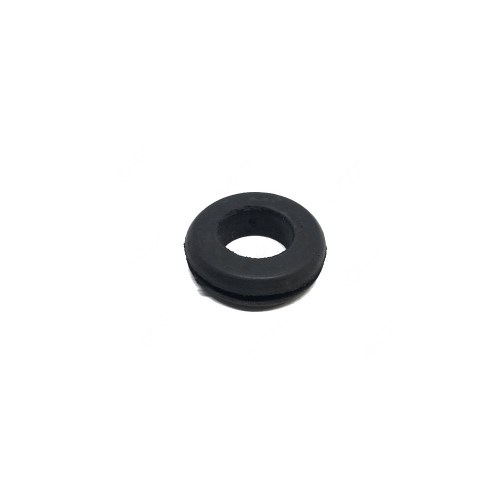

Oil filter bracket grommet
Rubber grommet for oil supply line
Rubber grommet that protects the oil supply line through the oil filter bracket on the passenger side of the cylinder head. This small but essential component prevents wear of the oil supply hose and ensures a neat passage through the hole in the bracket.
|
Material Rubber |
Function Oil supply line passage |
|
Application Oil filter bracket |
Engine type L-134 Go Devil |
Features
- Protects oil supply line against wear
- Fits in oil filter bracket hole
- Rubber construction to original Willys specification
- Small but essential component for correct assembly
- Prevents metal-to-metal contact
★ Reproduction of the original rubber grommet as applied on Willys MB production. Ford GPW used felt instead of rubber, but rubber is functionally superior.
Application
For jeeps with external canister-type oil filter (Purolator/Fram) mounted on bracket on passenger side of cylinder head. Used on L-134 engines with chain-driven camshaft (early MB/GPW 1941-1945, M201, early CJ-2A until circa 1948) and gear-driven camshaft (late CJ-2A, CJ-3A, M38, early CJ-3B with L-134).
Installation notes
The grommet is placed in the forward hole of the oil filter bracket through which the oil supply line runs from the 90° fitting behind the fuel pump to the oil filter canister. Fit the grommet before installing the oil supply line. Note: Willys used rubber, Ford used felt — rubber is more durable.
Compatibility
NOT suitable for F-134 engines (late CJ-3B, M38A1) which use a different oil filter bracket and mounting method. Also not for jeeps without external canister oil filter. Difference between early and late L-134 engines lies in camshaft drive (chain vs gear), but oil filter system is identical.
Historical context
The external canister oil filter was standard on all WWII MB/GPW jeeps and was mounted on a steel bracket fitted under three cylinder head bolts on the passenger side. These brackets are notorious for frequently cracking due to vibration and stress from the oil filter canister.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
ALL_CATEGORIES : Oil Circulation Filter CJ, Oil circulation - CJ2A, Oil Circulation Filter CJ CJ3B
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
| Ford GPW (early) | 1942 |
| Ford GPW | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 (early) | 1956, 1957, 1958, 1959 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
| Willys M38 | 1950, 1951, 1952 |
| CJ series | |
| Jeep CJ-2A | 1945, 1946, 1947, 1948, 1949 |
| Jeep CJ-3A | 1949, 1950, 1951, 1952, 1953 |
📐 Diagrams & technical drawings
From the original Technical Manual CJ2A_PL_1949 — Parts List — only for Willys CJ-2A / CJ-3A (1949)
From the original Technical Manual TM 10-1513 — Maintenance Manual — only for Willys MB / Ford GPW (1942)
