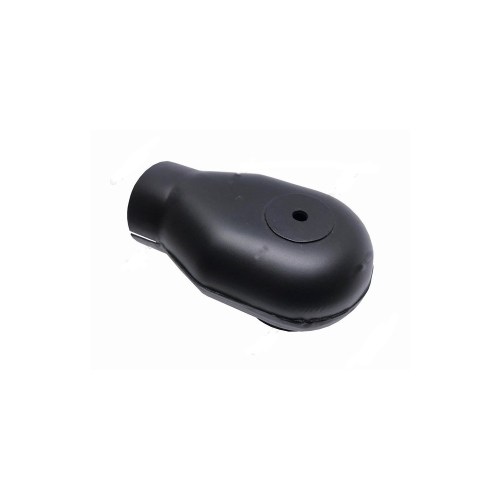

Carburettor Air Horn
Metal 90° elbow
Metal air horn for the connection between the top of the carburettor and the air filter hose. This steel 90° elbow forms part of the air intake system and often replaces missing or damaged original parts on jeeps with L-134 engine.
|
Material Steel |
Type 90° elbow |
|
Application L-134 engine with Carter or Solex carburettor |
Carburettor Carter WO type (downdraft) |
Features
- Metal construction for durability
- 90° elbow for correct routing to air filter
- Connects carburettor to air filter hose
- Fitted with rubber seal all around
- Clamped with metal clips on both sides
★ High-quality modern reproduction. This air horn is often found to be missing or damaged on restoration projects.
Installation notes
The air horn is mounted between the top of the Carter carburettor and the air filter hose. A rubber seal is fitted around the air horn and secured with clamps. The clamp on the carburettor side has an inner diameter of approximately 2.40 inches (61 mm).
Compatibility
Suitable for jeeps with L-134 flathead engine and downdraft Carter WO or Solex carburettor. NOT suitable for later F-134 overhead valve engines or side-draught carburettors.
Historical context
The air horn forms an essential part of the Carter WO carburettor system that was fitted to millions of military jeeps during the Second World War.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
