BRACKET HORN FORD TYPE
WOA1389

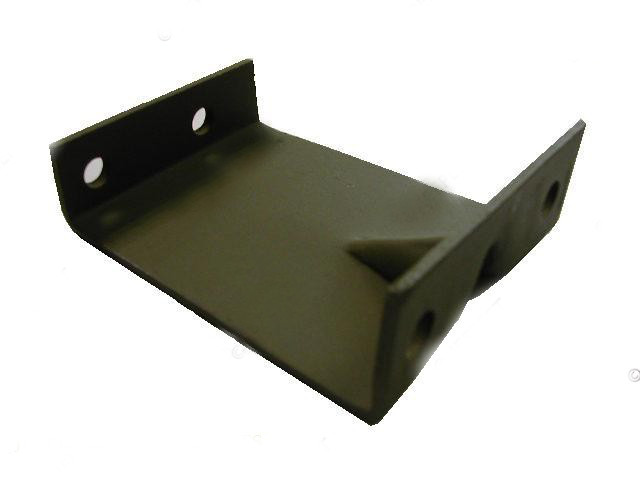

Horn Bracket Ford GPW Type
Firewall mounting
Reproduction of the horn bracket specific to Ford GPW. This bracket mounts to the firewall in the engine compartment and serves to secure the horn. The Ford GPW version is distinguished from the Willys MB variant by an additional pressing detail.
|
Material Steel |
Finish Pressed steel |
|
Vehicle Ford GPW |
Part number GPW-13831 |
Features
- Specific Ford GPW version with additional pressing
- Mounted to the firewall
- Holds the 6V horn in place
- For early version with firewall-mounted horn
- Reproduction to original specifications
★ Note: a separate anti-vibration bracket is required to attach the horn to this firewall bracket — not included.
Application
Ford GPW 1941-1945. Early versions with horn mounted to the firewall. This bracket was used before the horn was relocated to other positions in later production years.
Installation notes
Fitted to the firewall in the engine compartment. Between this bracket and the horn itself, a separate anti-vibration spring bracket must be fitted. Check whether the horn on your vehicle was originally mounted to the firewall.
Compatibility
NOT compatible with Willys MB — the Willys MB variant (part number WO-A1389) has NO additional pressing and is shaped differently. Ford GPW and Willys MB horn brackets are not interchangeable due to design differences.
Historical context
Ford GPW jeeps were produced from 1941 to 1945 with approximately 277,878 units. Although the Ford GPW and Willys MB were largely identical, Ford applied its own production methods with specific pressing details in components such as this horn bracket.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
ALL_CATEGORIES : 01 SGI BODY ENGINE COMPARTMENT
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Ford GPW | 1942, 1943, 1944, 1945 |
