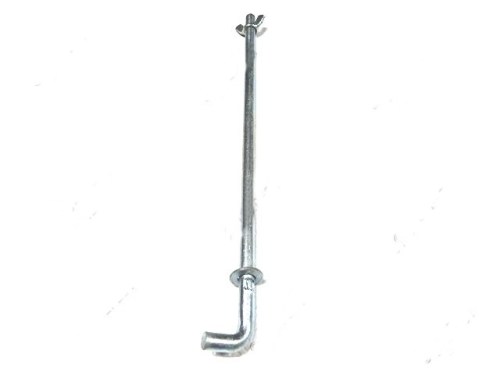

CLAMP ROD BATTERY HOLD DOWN 6 VOLTS
Battery tray hold-down clamp rods 6V
Set of 2 J-bolts with nuts
Hold-down rods for mounting the battery tray frame on jeeps with 6V electrical systems. These curved rods (J-bolts) are inserted through the battery tray and secured with wing nuts or hex nuts to hold the battery firmly in place. Essential component to prevent battery movement during driving.
|
Material Steel |
Finish Black oxide (Raven finish) |
|
Thread 5/16"-18 NC |
Set contents 2 hold-down rods with fixing hardware |
Features
- Thread length 9 inches (approx. 23 cm)
- Curved hook at base (J-shape)
- Nuts and washers included
- Suitable for 6V battery installations
- Prevents battery movement and loose connections
★ Reproductions according to original military specifications for correct and secure battery mounting.
Installation notes
The hold-down rods are inserted through the battery tray frame, underneath the battery box, and secured from below with nuts. Ensure the battery is correctly positioned before tightening the nuts. Check regularly that the mounting remains secure.
Historical context
During WWII, these hold-down rods were initially supplied with wing nuts for quick removal without tools, later changing to hex nuts. The black Raven finish was standard on military vehicles.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
