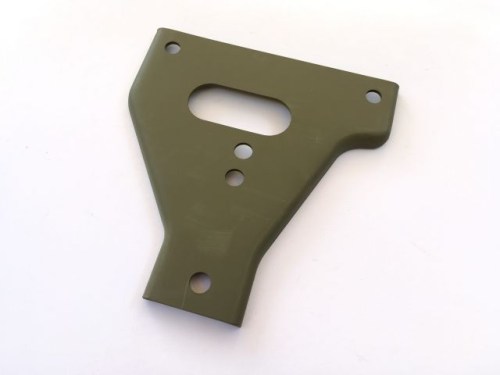

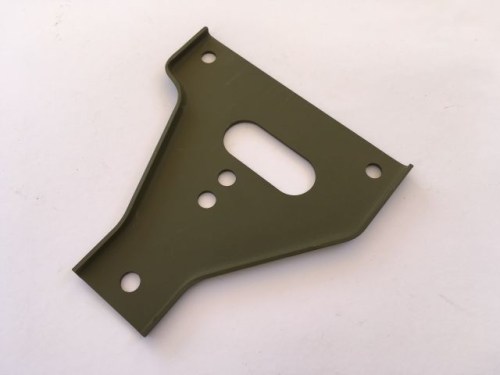

GUSSET FRONT BUMPER LOWER LEFT
WOA1129
Front bumper reinforcement plate lower left
Corner bracket chassis to bumper
Reinforcement plate for the lower left side of the front bumper. This essential frame component securely mounts the bumper to the chassis at the front spring shackle bracket. Provides structural reinforcement against impacts and off-road loads.
|
Function Bumper-chassis corner bracket |
Position Lower left, front bumper |
|
Mounting Via spring shackle bracket to frame |
Installation Riveted or bolted |
Features
- Reinforcement plate for lower left front bumper
- Mounts bumper to frame via spring shackle bracket
- Prevents damage and deformation from impacts
- Pressed steel plate for high strength
- Originally fitted with rivets (bolts acceptable in restoration)
★ Reproduction to original WWII specification. Part number A-1129.
Installation notes
The lower gussets are mounted between the front spring shackle bracket and the frame end. Originally riveted, but restorations often use 3/8" NF bolts with rounded heads. Install with slight clearance for final alignment with upper gussets and bumper.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
ALL_CATEGORIES : 06 SGI FRAME PARTS
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
