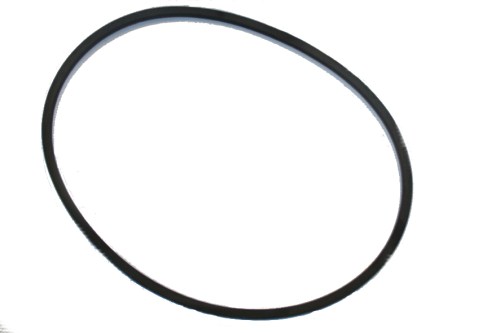

BELT FAN AND GENERATOR 24 VOLTS 1X
V-belt for Hotchkiss M201
Two needed per jeep.
Wrapped type like original
Fan and dynamo belt 24V
V-belts for driving the fan and waterproof dynamo on the 24V electrical system. The M201's 24V system uses a double V-belt configuration for reliable dynamo drive. Two belts are required per vehicle.
|
Type V-belt, wrapped construction |
Contents
|
|
Voltage 24 Volt system |
Application Fan and dynamo drive |
Features
- Wrapped construction as per original
- For waterproof dynamo with double pulley
- Fan and dynamo drive
- Essential for correct charging system operation
★ High-quality V-belts in wrapped construction, as per the original specification for the French military 24V electrical system.
Application
For vehicles equipped with 24V electrical system and waterproof dynamo. The 24V system was introduced on the French military jeep from 1960 (according to NATO 24V specification) and remained in production until 1967.
Installation notes
Install both belts simultaneously. Check correct tension — belts should be firm but not excessively tight. Ensure correct alignment of the dynamo pulley relative to the crankshaft pulley and fan. Check regularly for wear.
Compatibility
Specific for 24V dynamo system with double pulley. NOT compatible with 6V or 12V systems using a single belt. Early M201 models (1955-1960) had a 6V system — check your vehicle before ordering.
Historical context
The French armed forces opted in 1960 for a 24V electrical system according to NATO specification, with a waterproof dynamo and shielded wiring for reliability in severe conditions.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
