BOLT U SPRING REAR&FRONT GPW

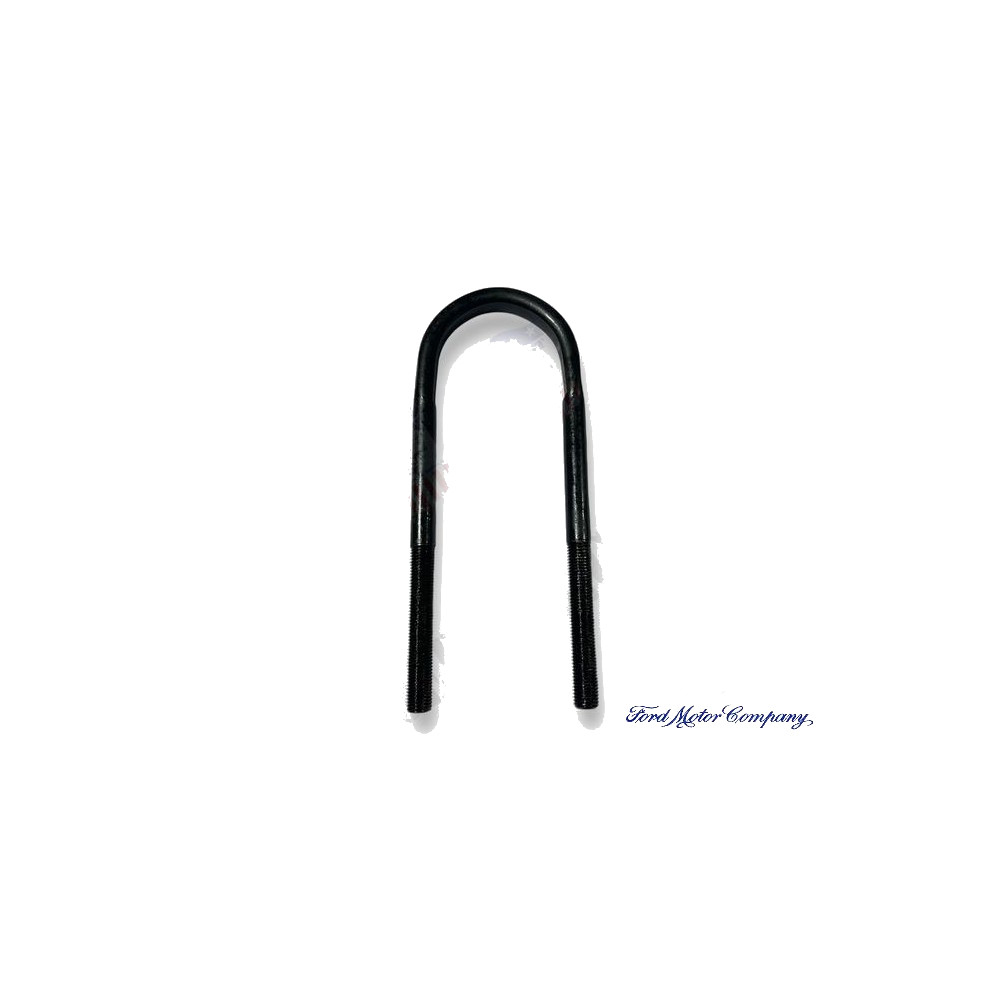

Leaf spring U-bolt front and rear
Type A-575 — narrow version
Essential U-bolt for securing the leaf spring pack to the axle, both front and rear. This narrow version is used on 7 of the 8 mounting points on Ford GPW vehicles. Supplied complete with nuts.
|
Thread size 7/16"-20 |
Type A-575 — narrow version |
|
Application Front and rear leaf spring |
Quantity required 7 pieces per vehicle |
Features
- Complete with nuts and lock washers
- Thread size 7/16"-20 UNF
- Narrow version for standard axle diameter
- Replacement part to original specifications
- For 7 of the 8 spring points (use A-574 large version for 8th point)
★ High-quality reproduction to original military specifications. The U-bolt ensures correct clamping force between leaf spring and axle, essential for safe road holding and protection of the centerpin.
Application
Ford GPW 1941-1945. The narrow A-575 U-bolt is used at 7 locations: 4 rear (both sides of axle) and 3 front (left driver's side and inner right passenger side). For the 8th point (outer right passenger side front), the large A-574 U-bolt is required due to larger Dana 25 axle diameter.
Installation notes
Position U-bolt clips around the axle on both sides of the leaf spring pack. Secure to the mounting plate beneath the leaf spring with lock washers and nuts. Torque to specification for 7/16" U-bolts. Check tightness of all U-bolts after short running-in period (50-100 km).
Compatibility
PLEASE NOTE: For Ford GPW, 7 pieces A-575 (narrow version) and 1 piece A-574 (large version) are required per complete vehicle. The A-574 is needed for the right front side due to difference in axle diameter. Do not use A-575 exclusively for all 8 points — this will result in incorrect mounting.
Historical context
The U-bolt mounting system was standardised by Ford and Willys for the military 1/4-ton jeeps during WWII. The system allowed for simple assembly and maintenance under field conditions, where defective springs could be replaced quickly.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
ALL_CATEGORIES : SUSPENSION REAR
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Ford GPW (early) | 1942 |
| Ford GPW | 1942, 1943, 1944, 1945 |
