WASHER COUNTERSHAFT GEARBOX T-84
WO635811

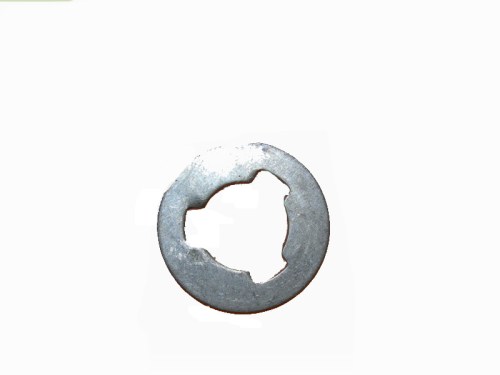

Thrust washer for T-84 gearbox shaft
Thrust washer for T-84 transmission
Original specification thrust washer for the T-84 gearbox. Essential component for correct adjustment of axial play in the transmission. Must always be replaced during overhaul.
Application T-84 gearbox | Vehicle Willys MB, Ford GPW, M201, CJ-2A, CJ-3A, CJ-3B, M38, M38A1 |
Original number WO-635811 | Thickness (standard) Approx. 0.063" - 0.064" (1.60 - 1.63 mm) |
Features
- Crucial component for correct cluster gear axial play Available in various thicknesses for precise adjustment Must be replaced at every T-84 overhaul Fitted with 'mouse ears' (cut-outs) for oil supply to bearings
★ During a thorough T-84 overhaul, thrust washers are always replaced, regardless of visual condition. Wear is difficult to detect but can lead to excessive play and gear damage. Correct cluster gear end play: 0.004" to 0.016" (service limit).
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
| Ford GPW (early) | 1942 |
| Ford GPW | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 (early) | 1956, 1957, 1958, 1959 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-1803B — Ordnance Maintenance — Power Train, Body & Frame — only for Willys MB / Ford GPW (¼-ton 4×4)
