ROD CONNEC STEERRING ADJUSTABLE TYPE M201
HO81109

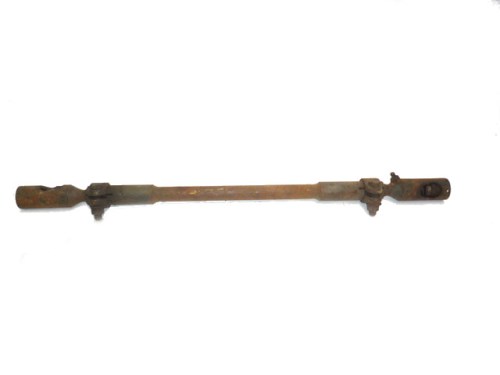

Adjustable tie rod type M201
Adjustable version for precise adjustment
Adjustable tie rod for the steering system of the Hotchkiss M201. This component connects the steering arm to the steering rod and enables precise adjustment of the wheel alignment. Essential component for correct steering and road holding.
|
Material Steel |
Type Adjustable |
|
Vehicle Hotchkiss M201 |
Application Steering system |
Features
- Adjustable version for correct wheel alignment
- Left and right-hand thread for adjustment
- Robust steel construction
- Fitted with ball joints with tapered connection
- Suitable for standard steering arm
★ Quality steering component for precise adjustment of the steering. Fitted with left and right-hand thread for easy length adjustment during setting.
Application
Suitable for Hotchkiss M201 produced between 1955 and 1966. Due to the identical chassis design also applicable to similar post-war jeeps with the same steering geometry.
Installation notes
Check the condition of the ball joints and dust covers during fitting. Adjust the length according to prescribed wheel alignment. Tighten lock nuts correctly. After fitting, have wheel alignment checked and adjusted. Grease ball joints via grease nipple until dust cover is filled.
Compatibility
Specific for M201 version of the steering system. Not compatible with later CJ models that use different ball joint dimensions. Check before fitting that the tapered connections match your steering arm.
Historical context
The Hotchkiss M201 was built from 1955 to 1966 in France under Willys licence and was virtually identical to the WWII Willys MB. In total, 27,628 M201s were produced, primarily for the French army.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-1803B — Ordnance Maintenance — Power Train, Body & Frame — only for Willys MB / Ford GPW (¼-ton 4×4)
