BEARING PTO DODGE CUP+CONE 14118-14276
Tapered bearing PTO Dodge WC — Cup+Cone 14118-14276
Timken specification for PTO drive shaft

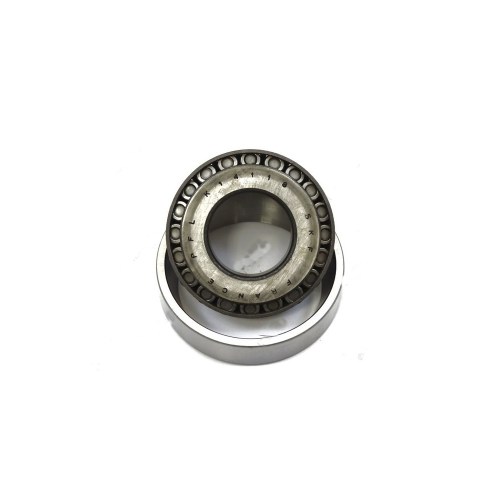

Tapered roller bearing for the Power Take-Off (PTO) of Dodge WC vehicles. Supplied as a complete set consisting of cone (inner race 14118) and cup (outer race 14276), according to original Timken specification.
|
Bearing type Tapered roller bearing (kegellager) |
Specification Cone 14118 + Cup 14276 |
|
Application PTO aftakas Dodge WC 4x4 en 6x6 |
Configuration Cup + Cone set |
Features
- Complete bearing set (cone + cup)
- Original Timken dimensions
- Suitable for PTO drive shaft
- Imperial measurements (inch)
- High radial and axial load capacity
★ Precision tapered bearing to Timken specification, specially designed for the high radial and axial loads in the PTO drivetrain of Dodge WC military vehicles.
Application
Suitable for the Power Take-Off (PTO) drive shaft of Dodge WC 4x4 (3/4-tonne) and WC 6x6 (1½-tonne) military vehicles from the WWII period (1942-1945). The PTO is used to drive the front winch via a drive shaft from the gearbox.
Installation notes
Tapered bearings must always be fitted in pairs and correctly preloaded during installation. Ensure correct axial preload according to the original technical manual. Use suitable assembly tools to prevent damage to the bearing surfaces. Lubricate with high-quality bearing grease before fitting.
Compatibility
Compatible with Dodge WC series vehicles equipped with PTO system for winch drive, both 4x4 and 6x6 models. Note: not all Dodge WC vehicles had a winch — check whether your vehicle was originally equipped with PTO and winch (model WC-57, WC-63, etc.). The winch models had a longer frame at the front.
Historical context
The Dodge WC series was equipped with PTO-driven Braden MU2 winches with pulling capacities of 5,000 to 7,500 pounds. The PTO system took power directly from the engine via the gearbox, allowing the winch to be operated without electrical drive.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |
| Dodge WC56 command car | 1942, 1943, 1944, 1945 |
| Dodge WC58 radio command car | 1942, 1943, 1944, 1945 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
