BOLT SPACER WINCH GUIDE
Cable Guide Spacer Bolt for Winch
For Braden MU-2 winch

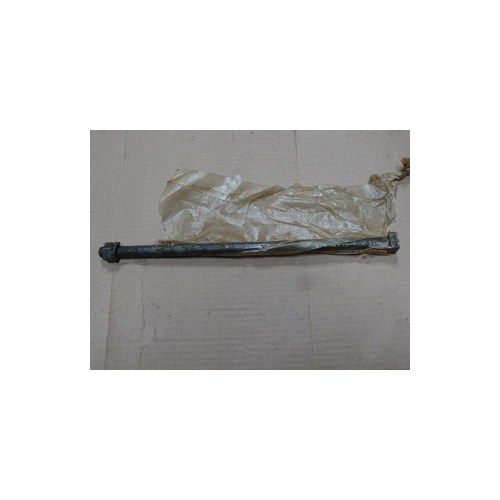

Mounting bolt with spacer for the cable guide of the Braden MU-2 winch. This bolt keeps the guide roller at the correct distance and ensures smooth cable operation during winching operations.
|
Winch type Braden MU-2 |
Component Cable guide mounting |
|
Original number CC926751 |
Type Bolt with spacer |
Features
- For Braden MU-2 winch
- Mounts cable guide
- With integrated spacer
- Original design
- Steel construction
★ Essential component for correct cable guidance and smooth operation of the power take-off driven winch.
Application
For Dodge WC-series vehicles fitted with Braden MU-2 winch (including WC-52, WC-57, WC-62, WC-63) and M37-series vehicles with factory winch. The MU-2 was the standard PTO-driven front winch on these vehicles.
Installation notes
The bolt secures the cable guide shaft and maintains it at the correct distance from the winch frame. Check during installation that the guide roller can rotate freely and the cable runs without friction.
Compatibility
Specific to Braden MU-2 winch. Not compatible with later LU-4 or other winch types. Fits all Dodge WC 3/4-ton and 1½-ton 6x6 vehicles with factory winch, as well as M37/M37B1 with winch.
Historical context
The Braden MU-2 was the standard power take-off driven winch on Dodge WC-series lorries during WWII. These winches had capacities of 5,000 to 10,000 lbs, depending on model and specification.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
