BRUSH GENERATOR 6 VOLTS (SET OF 2) DODGE
Auto-Lite
Generator Brush Set 6 Volt

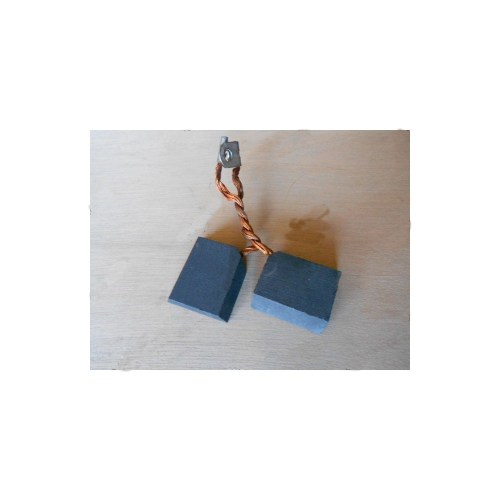

Set of 2 Brushes — Auto-Lite GEG5101A
Replacement generator brushes for 6 volt Auto-Lite generators on Dodge WC-series vehicles. These brushes were original equipment for the Auto-Lite GEG5101A generator fitted to 3/4-ton Dodge WC trucks after engine number 154156. Set consists of two carbon brushes complete with springs and terminals.
|
System 6 volt, positive ground |
Generator Type Auto-Lite GEG5101A |
|
Vehicle Dodge WC 3/4-ton (1942-1945) |
Set Contents 2 brushes complete |
Features
- Set of 2 generator brushes
- For Auto-Lite 6 volt generators
- 6 volt positive ground system
- Original type carbon brushes
- Complete with springs and terminals
★ Original Auto-Lite type generator brushes for correct operation of the 6 volt charging system on Dodge WC-series vehicles.
Application
Dodge WC 3/4-ton series (1942-1945) fitted with Auto-Lite GEG5101A generator from engine number 154156 onwards. Also applicable to various other WWII military vehicles with the same Auto-Lite 6 volt generator (G-502, G-505, G-507 series). Not for early WC 1/2-ton with AL-GEW4806 or early 3/4-ton with AL-GEG5002 (before engine number 154156).
Installation notes
Check before fitting that the generator is correctly polarised (positive ground). Brushes must move freely in the brush holders. Commutator must be clean and smooth — if necessary lightly sand with fine abrasive paper. Test after fitting that the brush springs provide sufficient pressure. Polarise the generator after installation according to TM specifications.
Compatibility
FITS: Dodge WC 3/4-ton with Auto-Lite GEG5101A generator (after engine number 154156). DOES NOT FIT: Early WC 1/2-ton with AL-GEW4806, early 3/4-ton with AL-GEG5002 (before engine number 154156). Note: Command Cars and Carryalls sometimes received 12 volt systems — check voltage before ordering.
Historical context
Auto-Lite was a major supplier of electrical components for U.S. military vehicles during WWII. The GEG5101A generator produced 25 amperes and was fitted to later production Dodge WC 3/4-ton trucks which were deployed in large numbers from North Africa to the Pacific.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Alle Dodge WC / M-serie | 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
