FLOAT CARBURETOR ZENTIH MOD29 NET
Zenith

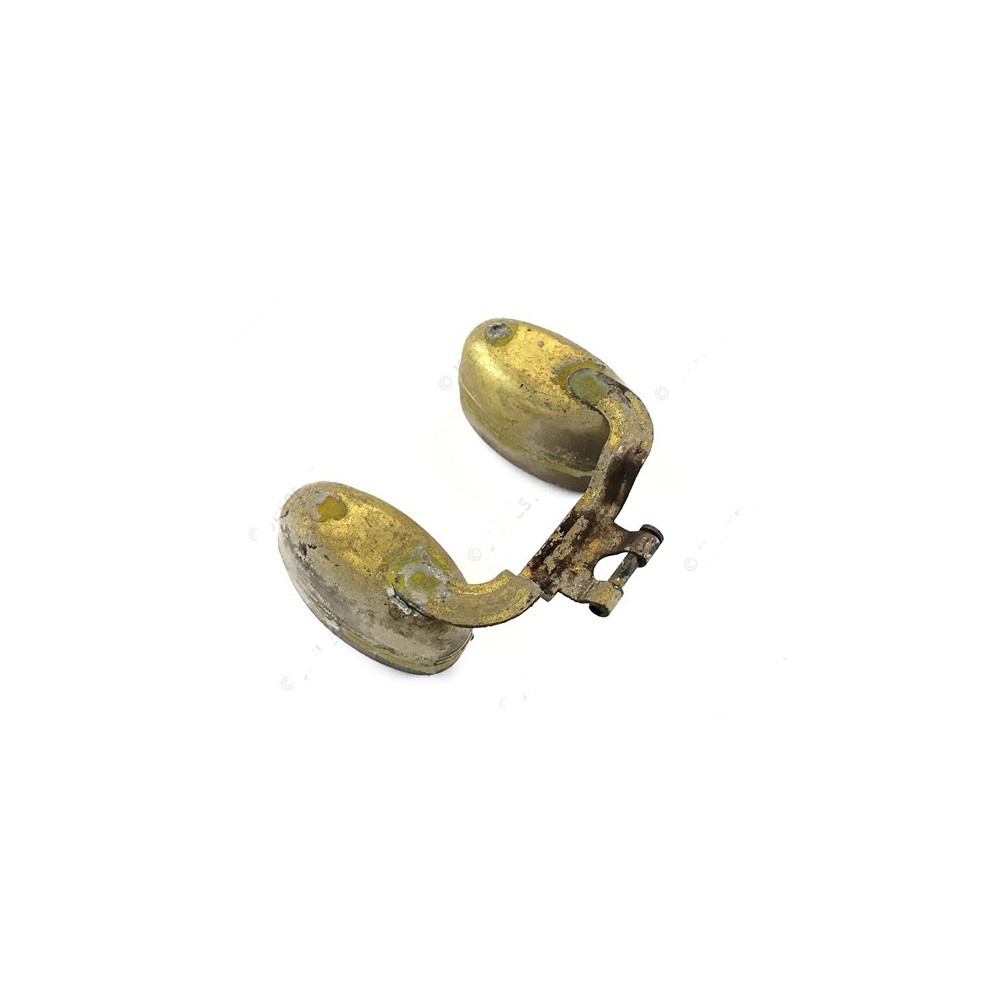

Zenith Model 29 Carburettor Float
Original replacement float for the Zenith Model 29 carburettor. This brass pontoon float regulates the fuel level in the float bowl via a ball-type needle valve construction. A critical component for correct carburettor operation.
|
Material Brass (soldered pontoon type) |
Type Zenith Model 29 float |
|
Application Zenith Model 29 carburettor |
Period WWII original type |
Features
- Brass pontoon float construction
- Soldered double wall for optimum buoyancy
- Hinged mounting with needle valve
- Suitable for rebuilding Zenith Model 29 carburettors
- Essential component for correct fuel level
★ The float determines the fuel level in the float bowl — incorrect weight or damaged float leads to fuel starvation or flooding. Always use a float with correct weight and intact solder seams.
Application
This float fits various versions of the Zenith Model 29 carburettor. Note: the Model 29 was used on different WWII military vehicles, but not all variants are identical — jets and metering differ per application. Verify this is the correct float for your specific Model 29 version.
Installation notes
Always check the float for leaks (immerse in hot water, look for bubbles) before installing. Mount the hinge pin correctly in the carburettor body. Check fuel level after installation — adjust level via thickness of gaskets under the needle valve, NEVER bend the float itself. Recommended fuel pressure: 4.5-5 PSI maximum.
Compatibility
The Zenith Model 29 exists in multiple variants with different jets, but the float is often interchangeable between these versions. Carburettor kits for Model 29 are application-specific — a kit for Dodge WC is NOT identical to a kit for M8/M20 armoured cars or other applications. Verify compatibility based on your carburettor number (stamped on round plate on top of carburettor).
Historical context
The Zenith Model 29 was a robust updraft carburettor used on various WWII military vehicles. Zenith produced these carburettors in both die-cast and later cast iron versions during the war.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |
| Dodge WC54 ambulance | 1942, 1943, 1944 |
| Dodge WC55 gun motor carriage | 1942, 1943 |
| Dodge WC56 command car | 1942, 1943, 1944, 1945 |
| Dodge WC57 command car (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC58 radio command car | 1942, 1943, 1944, 1945 |
| Dodge WC63 6x6 (winch) | 1943, 1944, 1945 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
