GAUGE WATER TEMPERATURE STANDART
Water Temperature Gauge Standard
With integrated capillary and sensor
Reproduction water temperature gauge for dashboard mounting. This mechanical gauge operates with an integrated capillary tube and expansion bulb which screws directly into the cylinder head. Fits a standard 2" (50.8 mm) opening in the instrument panel.
|
Type Mechanical, capillary system |
Diameter 2" (50.8 mm) |
|
Housing Black bezel, white needle |
Mounting Dashboard, mounting hardware included |
Features
- Mechanical water temperature gauge with capillary tube
- Integrated sensor and mounting hardware
- Black bezel with white needle
- Fits standard 2" dashboard opening
- Suitable for 6V and 12V systems
★ High-quality reproduction gauge with integrated sensor — mounting kit included. Works on both 6 volt and 12 volt vehicles.
Application
This mechanical water temperature gauge fits vehicles as mentioned in the product categories. The sensor bulb is screwed into the existing opening on the side of the cylinder head. Note: on some vehicles an adapter bushing may be required depending on the thread in the cylinder head.
Installation notes
The sensor bulb screws directly into the cylinder head (typically on the passenger side, rear). The capillary tube is routed from the engine through the firewall to the dashboard. The gauge is inserted from behind into the dashboard and secured with the supplied bracket. Use the correct spanner size to prevent damage to the fitting.
Compatibility
This is a mechanical gauge with integrated sensor — NOT to be confused with electrical gauges using a separate temperature sender (such as 914847). On some vehicles with non-standard thread in the cylinder head, an adapter bushing may be required. Verify that the original temperature sensor opening is suitable for the supplied bulb.
Historical context
Originally, this type of mechanical capillary gauges were used on early military jeeps and civilian variants. Manufacturers such as Stewart Warner and King Seeley supplied these gauges for original production and replacement.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
ALL_CATEGORIES : ELECTRIC BODY MB, 09 DASHBOARD MB/GPW, DASHBOARD CJ2A, Cooling Thermostat Elbow CJ2A, ELECTRIC BODY CJ2A, DASHBOARD CJ3A, Cooling Thermostat Elbow CJ3A, ELECTRIC BODY CJ3A, DASHBOARD M38, PARTS DASHBOARD CJ2A, 09 DASHBOARD CJ3B, ELECTRIC BODY CJ3B
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
| CJ series | |
| Jeep CJ-2A | 1945, 1946, 1947, 1948, 1949 |
| Jeep CJ-3A | 1949, 1950, 1951, 1952, 1953 |

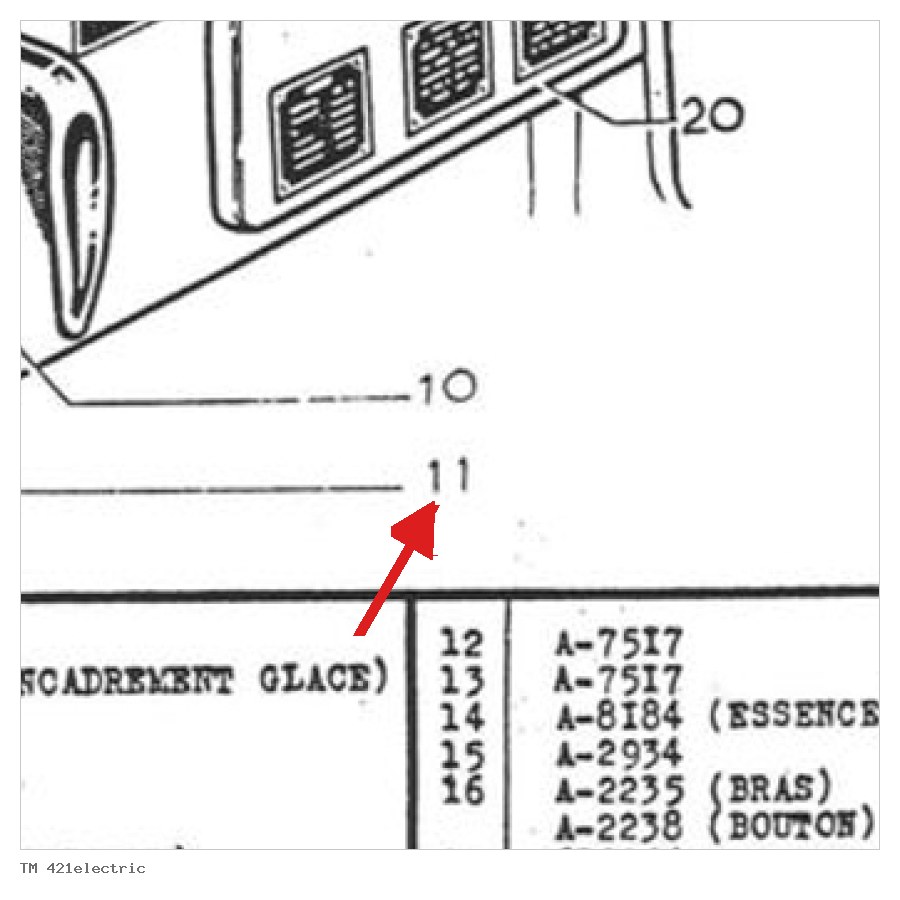

📐 Diagrams & technical drawings
From the original Technical Manual CJ2A_PL_1949 — Parts List — only for Willys CJ-2A / CJ-3A (1949)
From the original Technical Manual TM 10-1513 — Maintenance Manual — only for Willys MB / Ford GPW (1942)
From the original Technical Manual TM 9-1803B — Ordnance Maintenance — Power Train, Body & Frame — only for Willys MB / Ford GPW (¼-ton 4×4)
