HOLDER LUBE CHART UNDER HOOD
PORTEDOC

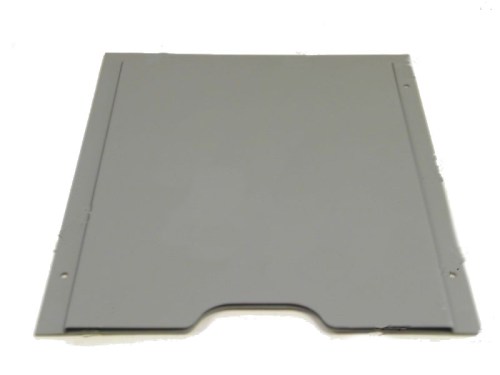

Lubrication chart holder under bonnet
Steel reproduction with rubber grommets
Steel holder for the lubrication chart, mounted to the inside of the bonnet. This reproduction protects the laminated lubrication chart (Chart Guide No. 501) against moisture and damage. Supplied with rubber grommets and pre-drilled mounting holes.
|
Material Steel with rubber grommets |
Finish Pre-drilled and stamped |
|
Mounting Inside bonnet |
Opening 15" (suitable for Chart No. 501) |
Features
- Pre-drilled mounting holes
- Original design reproduction
- Rubber grommets included
- Steel construction
- Stamped design
★ Accurate reproduction of the original steel lubrication chart holder. Protects the lubrication chart against weather conditions under the bonnet.
Installation notes
The holder is mounted to the inside of the bonnet using the pre-drilled holes. The lubrication chart (Chart Guide No. 501) is held in place by rubber grommets. Note: specific mounting location differs between early and late production — consult original technical documentation for exact placement.
Historical context
The Lubrication Guide Chart Holder (Willys part A-12716) was installed on MB jeeps from serial number MB-387532 through MB-438052. After this serial number, lubrication charts were supplied on folded paper and stored in the glove box. Ford GPW continued using the holder longer than Willys.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB | 1942, 1943, 1944, 1945 |
| Ford GPW | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
