KIT REPAIR WHEEL CYLINDER WITH PISTONS
CC947623C

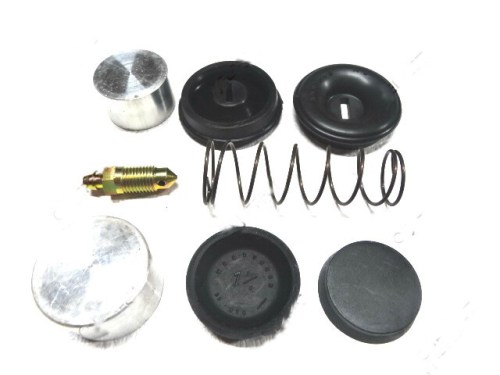

Wheel cylinder repair kit with pistons
For 1-1/4" x 1-3/8" wheel cylinders
Complete repair kit for overhauling wheel cylinders in the brake system. This kit contains all necessary parts to repair a leaking or worn wheel cylinder and restores the hydraulic brake system to original specifications.
|
Material Rubber seals, steel springs, pistons |
Cylinder size 1-1/4" x 1-3/8" bore |
|
Application Dodge WC series vehicles |
Kit contents Pistons, seals (cups), springs, dust boots |
Features
- Complete repair kit for wheel cylinder overhaul
- Contains pistons, rubber seals and springs
- Suitable for 1-1/4" x 1-3/8" bore wheel cylinders
- Restores hydraulic pressure in the brake system
- Alternative to replacing complete wheel cylinder
★ Professional repair kit with all necessary components for a complete wheel cylinder overhaul. Economical solution for hydraulic brake system repair.
Application
Suitable for Dodge WC 1/2 ton 4x4 (1941-1942, rear only with 14" brakes), Dodge WC 3/4 ton 4x4 (1942-1945), Dodge WC 1-1/2 ton 6x6 (1943-1945), and post-war Power Wagon and M37 series vehicles fitted with 1-1/4" x 1-3/8" wheel cylinders. Always verify the bore dimensions of your wheel cylinder before fitting.
Installation notes
Before disassembly, check that the bleed nipple is not seized. Inspect the cylinder bore thoroughly for pitting and scoring — in case of severe corrosion, replacement of the complete cylinder is recommended. Fit the new seals (cups) in the correct direction on the pistons. Lubricate all parts with brake fluid before assembly. Bleed the brake system completely after installation.
Compatibility
Please note: early T-207 models (1940-1941) had 11" brake drums front and rear. From T-211 models onwards, vehicles received 14" rear brakes. This kit only fits wheel cylinders with 1-1/4" x 1-3/8" bore. Different Dodge models used different cylinder sizes — always verify bore dimensions before ordering.
Historical context
The Dodge WC series formed the backbone of light to medium military transport vehicles during WWII. The hydraulic brake system with these wheel cylinders was a reliable design that continued in post-war Power Wagon and M37 vehicles.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Alle Dodge WC / M-serie | 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |
