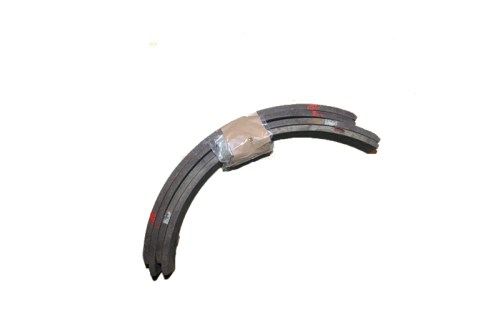

LINING BRAKE SHOE (SET FOR 2 WHEELS)
CC996447
Brake Shoe Lining Set
For 2 wheels (4 linings with rivets)
Complete brake shoe lining set for relining brake shoes on Dodge WC-series vehicles. The set contains four linings with rivets, sufficient for two wheels. Pre-drilling of mounting holes is required before installation.
|
Application 14" brake drums |
Mounting Riveted design |
|
Set contents 4 linings + rivets |
Capacity 2 wheels |
Features
- 4 brake shoe linings with rivets
- Suitable for 14" brake drums
- Linings require pre-drilling
- Complete with fixings
- Sufficient for 2 wheels (1 axle)
★ High-quality replacement linings for robust braking performance to original specifications.
Installation notes
The linings must be drilled prior to installation to match the brake shoes. Install by riveting using the supplied rivets. Ensure correct positioning and uniform fastening along the full length of the brake shoe. For optimal results, professional relining service may be considered.
Compatibility
Please note: these are linings specifically for vehicles with 14" brake drums. Early vehicles with 11" brake drums require different linings. Check your vehicle's drum diameter before ordering.
Historical context
The larger 14" brake drums were introduced on later production series from 1941-1942, replacing the earlier 11" drums for improved braking capacity on more heavily laden military vehicles.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
