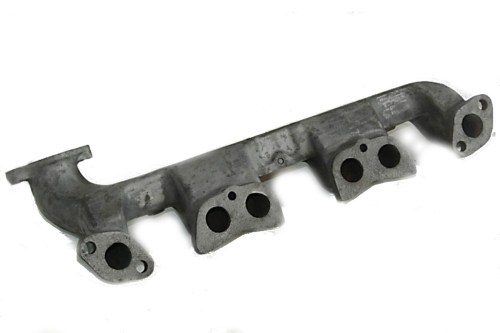

Exhaust Manifold Dodge WC-series
For 230 cu in flathead-6 engine
Cast iron exhaust manifold for Dodge WC-series military vehicles. This component carries exhaust gases from the 230 cu in L-head six-cylinder engine to the exhaust system. Essential component for correct engine operation and exhaust gas evacuation.
|
Material Cast iron |
Engine 230 cu in (3.8L) flathead-6 |
|
Application Dodge WC-series WWII |
Type Exhaust manifold |
Features
- Cast iron construction for durability
- For 230 cu in (3.8L) L-head six-cylinder engine
- Component for Dodge WC military vehicles
- Carries exhaust gases to exhaust system
- Original specifications
★ Robust cast iron exhaust manifold manufactured to original military specifications for long-term reliability under demanding conditions.
Application
Suitable for Dodge WC-series vehicles fitted with the 230 cu in (3.8L) flathead-6 engine. This engine was installed from mid-1941 in the T-211, T-214 and T-215 series, including WC 3/4-ton 4x4 models (1942-1945) and WC 1-1/2 ton 6x6 models (1943-1945).
Installation notes
Ensure correct sealing with new gaskets between manifold and cylinder head. Check all mounting surfaces for flatness. Use heat-resistant gaskets and follow correct torque specifications according to technical manual TM9-808. Inspect the connection to the exhaust system.
Compatibility
Specific to the 230 cu in engine. Not applicable to early WC half-ton models with 218 cu in engine (T-207). Check engine type before ordering. The exhaust outlet is located behind the sixth cylinder near the bulkhead.
Historical context
The Dodge 230 cu in flathead-6 engine produced 92 hp and was the workhorse of the Dodge WC-series from mid-1941 to 1945. This reliable engine was also used post-war in civilian Power Wagons and M37-series vehicles.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Alle Dodge WC / M-serie | 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
