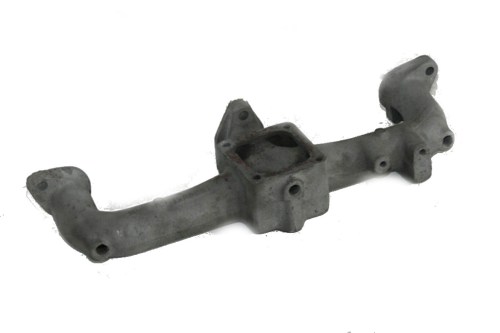

Intake Manifold Dodge T214
For 230 cu.in. six-cylinder engine
Intake manifold for the Dodge T214 engine, the 230 cubic inch (3.8 litre) six-cylinder inline engine used in the Dodge WC 3/4-ton 4x4 and 6x6 vehicles during World War II. This component connects the carburettor to the cylinder head and regulates the distribution of the air-fuel mixture to the individual cylinders.
|
Engine type Dodge T214 230 cu.in. (3.8L) |
Construction Cast iron |
|
Application WC-series 4x4 and 6x6 |
Engine code T214, T223 (6x6 variant) |
Features
- Suitable for 230 cu.in. six-cylinder engine
- Original specification for WC-series
- Connection for carburettor (Carter or Zenith)
- Cast iron construction
- Compatible with T214 and T223 engines
★ Essential engine component for the Dodge WC-series with T214 engine. Correct intake port dimensions are crucial for optimal performance of this 92 hp six-cylinder engine.
Application
Dodge WC 3/4-ton series (1941-1945) with T214 engine: WC-51, WC-52, WC-53, WC-54, WC-55, WC-56, WC-57, WC-58, WC-62, WC-63, WC-64 and other 4x4 variants. Also applicable to 6x6 models with T223 engine (mechanically identical to T214, only different accessories). Production period from August 1941 to August 1945.
Installation notes
Ensure correct connection with carburettor and exhaust manifold. Use new gaskets between manifold and cylinder head. Fixing bolts must be tightened evenly according to specification (see manual). Check for cracks or fractures in the cast iron before fitting. Manifold studs may be brittle after 80 years — remove carefully to prevent breakage.
Compatibility
Exclusively for Dodge 230 cu.in. (3.8L) engines with engine code T214 and T223. NOT compatible with earlier T207, T211 or T215 engines (smaller displacement: 201, 218 cu.in.). Also NOT interchangeable with later M37 T245 engines without modifications. The T214 and T223 are mechanically identical — only the accessories (dynamo, distributor) differ.
Historical context
The Dodge T214 engine was the beating heart of more than 250,000 WC-series lorries produced between 1941-1945. This robust 230 cu.in. six-cylinder delivered 92 hp at 3200 rpm and was designed for high torque at low revs — ideal for off-road military use.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Alle Dodge WC / M-serie | 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |

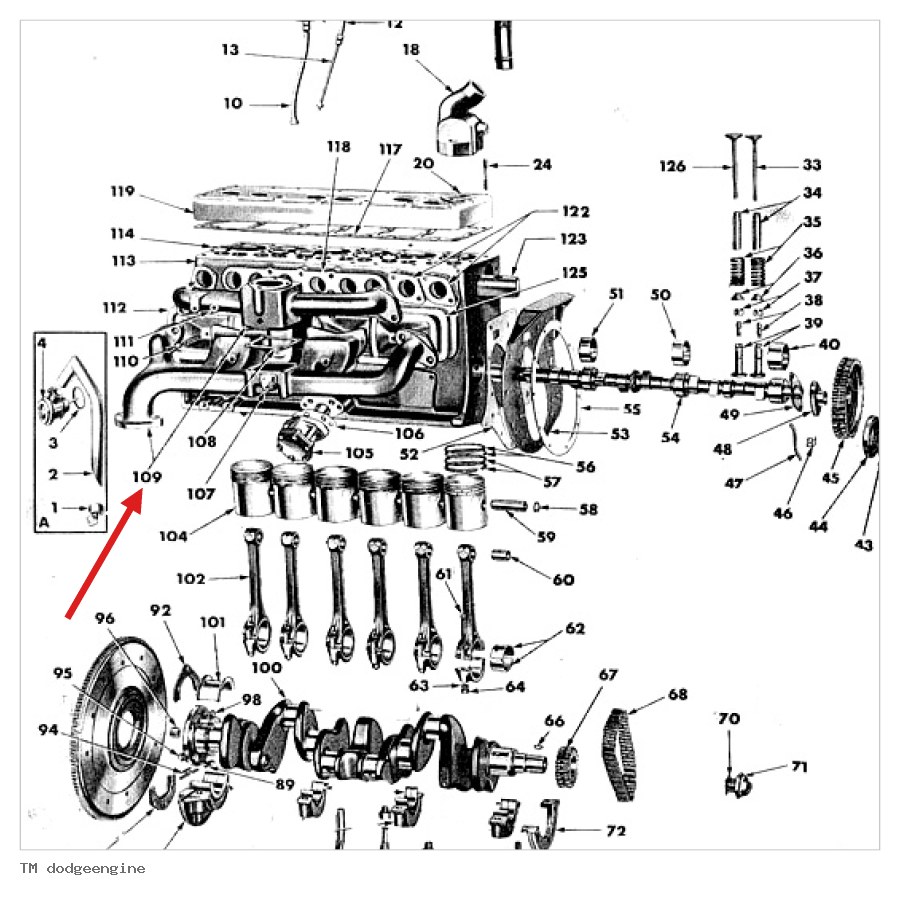

📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
