MASTER CYLINDER DODGE STANDART
CC920817

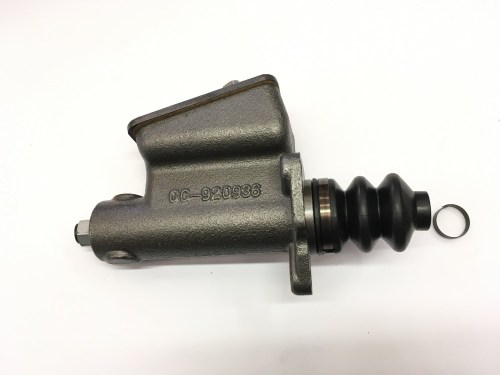

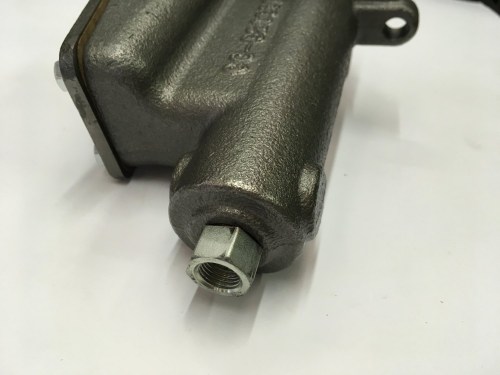

Master Brake Cylinder Standard Type
For Dodge WC Series
Master brake cylinder in standard type for hydraulic brake systems on Dodge WC series military vehicles. This cylinder is a critical component of the brake system and converts brake pedal pressure into hydraulic pressure for the wheel cylinders.
|
Application Dodge WC series |
Type Standard type |
|
Function Hydraulic master brake cylinder |
System 4-wheel hydraulic brakes |
Features
- Standard type for Dodge WC series
- Hydraulic master cylinder with reservoir
- Suitable for 4-wheel drum brake system
- Part of the original 6V brake system
- Triangular mounting pattern
★ Essential component for a reliably operating brake system on your Dodge WC military lorry.
Application
This master brake cylinder is designed for application on Dodge WC series military lorries (½-ton, ¾-ton and 1½-ton variants) from the Second World War period. Fits models with the original hydraulic 4-wheel drum brake system.
Installation notes
Mounting via triangular fixing pattern on the chassis. Ensure correct adjustment of the push rod free play (minimum 0.025 inch / approximately 0.6mm) to prevent brake drag. Check that the reservoir is not overfilled — approximately 10-13mm below the rim is sufficient.
Compatibility
Different types of master brake cylinders exist for the Dodge WC series: the flat-top type (used in some applications) and the slant-top type (standard on ¾-ton models). Check which type fits your specific vehicle. Note: modern reproductions may show variations in reservoir position and may interfere with the steering box. When in doubt: compare with original.
Historical context
The Dodge WC series lorries were equipped with a modern hydraulic brake system on all four wheels for the time, an important safety feature for military transport vehicles. The standard master brake cylinder was part of the proven Dodge brake system that was also applied in later M37 series lorries.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
ALL_CATEGORIES : GROUP 12-2 BRAKE LINES DODGE
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |
| Dodge WC54 ambulance | 1942, 1943, 1944 |
| Dodge WC56 command car | 1942, 1943, 1944, 1945 |
| Dodge WC57 command car (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC58 radio command car | 1942, 1943, 1944, 1945 |
| Dodge WC63 6x6 (winch) | 1943, 1944, 1945 |
| Dodge WC64 KD ambulance | 1945 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
