MOTOR VACCUM WINDSHIELD WIPER
CC927970
TRICO MADE IN FRANCE.

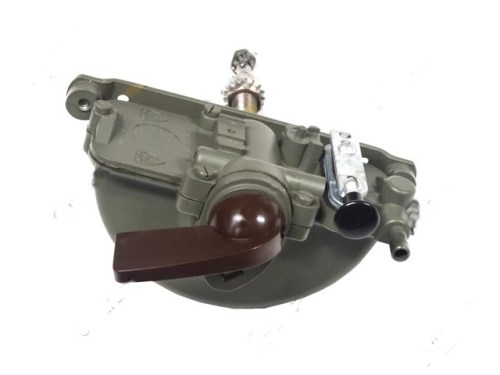

Vacuum Windscreen Wiper Motor
For WWII military vehicles with open cab
Vacuum windscreen wiper motor for WWII military vehicles. This vacuum-operated wiper motor was fitted as standard equipment on various American military vehicles during the Second World War and operates on vacuum supplied by a combination fuel/vacuum pump.
|
System Vacuümaangedreven |
Type Open cab configuratie |
|
Manufacturer Trico |
Specification ORD 500844 / S-583-1 |
Features
- Vacuum-operated wiper motor
- Suitable for open cab vehicles
- Trico S-583-1 specification
- Ordnance number 500844
- Manual operation option
★ Original Trico vacuum wiper motor as used on WWII military vehicles. These motors were standard equipment on various American military vehicles with open cab during the war.
Application
This vacuum wiper motor was fitted to WWII military vehicles with open cab configuration. The system operates on vacuum supplied by the combination fuel/vacuum pump. The motor features a manual operating lever for emergency situations.
Installation notes
The motor is mounted to the windscreen using a special mounting bracket. Connection is made via vacuum hoses to the fuel/vacuum pump. Ensure correct routing of vacuum hoses and check for leaks. On vehicles with fording capability, a return line to the air filter is required. A restrictor of 0.040 inch diameter in the T-fitting to the distributor is necessary for correct operation.
Compatibility
This is the standard open cab wiper motor (S-583-1). Note: closed cab vehicles use a different type of motor (Trico KSB series). Right and left motors are not interchangeable. Wiper arm position may vary depending on mounting location (top or bottom of windscreen).
Historical context
Trico vacuum wiper motors were fitted as standard equipment on American military vehicles from the early 1940s. The vacuum system remained in use until approximately 1960, when electric systems became the norm.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB | 1942, 1943, 1944, 1945 |
| Willys M38 | 1950, 1951, 1952 |
| CJ series | |
| Jeep CJ-2A | 1945, 1946, 1947, 1948, 1949 |
| Jeep CJ-3A | 1949, 1950, 1951, 1952, 1953 |
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |
| Dodge WC54 ambulance | 1942, 1943, 1944 |
| Dodge WC55 gun motor carriage | 1942, 1943 |
| Dodge WC56 command car | 1942, 1943, 1944, 1945 |
| Dodge WC57 command car (winch) | 1942, 1943, 1944, 1945 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
