PAD CRASH RIGHT STEEL
woa3115us

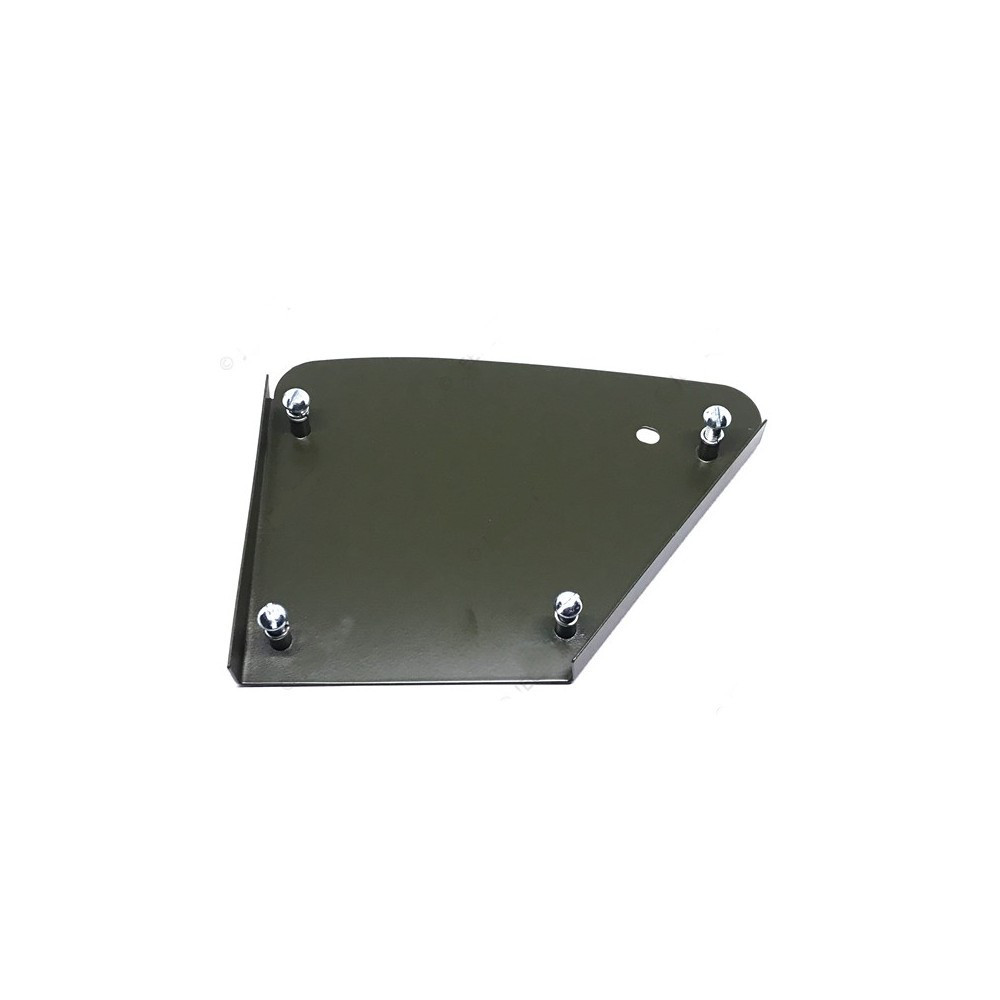

Crashpad right steel
Metal support plate without canvas covering
Reproduction of the metal support plate for the right crashpad (hip pad) of the Willys MB and Ford GPW. This steel plate forms the base onto which the canvas covering with padding is fixed. The crashpad protects occupants from contact with the body at the door opening.
|
Material Steel |
Side Right (passenger) |
|
Supply Metal plate only |
Fixings Fitting hardware sold separately |
Features
- Reproduction of original metal support plate
- For right side (passenger side)
- Canvas covering and padding not included
- Fitting hardware sold separately
- Pressed steel conforming to original design
★ This metal support plate is an exact reproduction of the original part and forms the base for mounting canvas crashpads.
Installation notes
The metal plate is fixed against the body side reinforcement at the door opening. The narrow, flat end points towards the floor, the wider curved end follows the shape of the door opening. For fitting, 1/4 x 3/4 UNC round head slotted screws with lock washers are required (sold separately). The canvas covering with padding is fixed to this metal plate, usually with contact adhesive.
Compatibility
This plate is specific for the right side. For the left side, a separate part is required. Please note: this is the metal support plate only. For a complete crashpad, the canvas covering with padding and fitting hardware are also required.
Historical context
Crashpads (also known as 'hip pads') were introduced during WWII to protect occupants from contact with the metal body wall. Original pads were filled with horsehair or rubberized hair material.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 10-1513 — Maintenance Manual — only for Willys MB / Ford GPW (1942)
