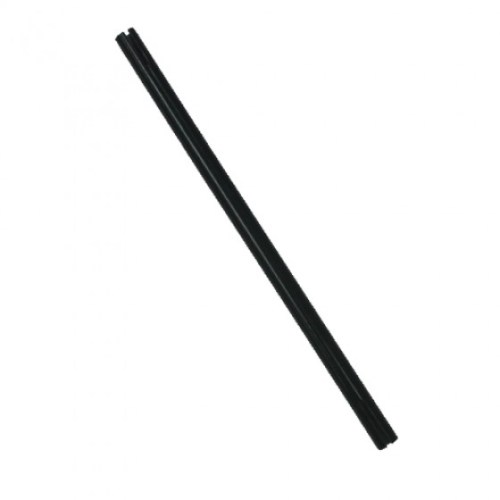

DRIVER SIDE STEERING TIE ROD TUBE
Replaces your LH side tie rod tube only and measures at 17-1/2" long.
Fits:
46-49 CJ-2A
49-53 CJ-3A
53-64 CJ-3B
55-71 CJ-5
Steering tie rod tube driver's side
For CJ-2A, CJ-3A, CJ-3B, CJ-5, CJ-6 and M38
Steering tie rod tube for the left-hand side of the steering system. This adjustable tube connects the steering knuckles to the bellcrank and features internal threads at both ends for fitting the tie rod ends. Length approximately 17-1/4 inches (44 cm).
|
Material Steel |
Thread 11/16" left-hand and right-hand thread |
|
Length 17-1/4" (approx. 44 cm) |
Position Left-hand side / driver's side |
Features
- Internal thread on both sides
- Provided with slot for clamp
- Comparable to original specification
- Requires 11/16" tie rod ends
- Adjustable for correct wheel alignment
★ Reproduction to original specification for post-war civilian Willys Jeep models.
Application
Suitable for Willys/Jeep CJ-2A (1946-1949), CJ-3A (1949-1953), CJ-3B (1953-1964), CJ-5 (1955-1971), CJ-6 (1955-1971) and Willys M38 (1950-1952). Fits on the left-hand side of the vehicle between bellcrank and left steering knuckle.
Installation notes
Tie rod ends must be screwed in at both sides: right-hand thread on the inside (bellcrank), left-hand thread on the outside (steering knuckle). After fitting, wheel alignment must be adjusted by rotating the tube. Do not forget to fit the clamps before mounting the tie rod ends.
Compatibility
Please note: this is NOT the tube for Willys MB or Ford GPW (WWII models). Different dimensions are required for MB/GPW. The passenger side (right) has a different length (18-3/4") and is sold separately (part number 642059). Later CJ-5 models (from 1972 onwards) may require different dimensions.
Historical context
This tie rod tube was used on the civilian Willys and Jeep models produced after the Second World War, from the CJ-2A through to the early CJ-5 and CJ-6 models from the 1960s and early 1970s.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys M38 | 1950, 1951, 1952 |
| Willys M38A1 | 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971 |
| CJ series | |
| Jeep CJ-2A | 1945, 1946, 1947, 1948, 1949 |
| Jeep CJ-3A | 1949, 1950, 1951, 1952, 1953 |
| Jeep CJ-3B | 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |
| Jeep CJ-5 | 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
