PIVOT TOP BOW MB LATE 3/8"
WOA2901
Top bow pivot late version
With 3/8" thread and A-2901 marking

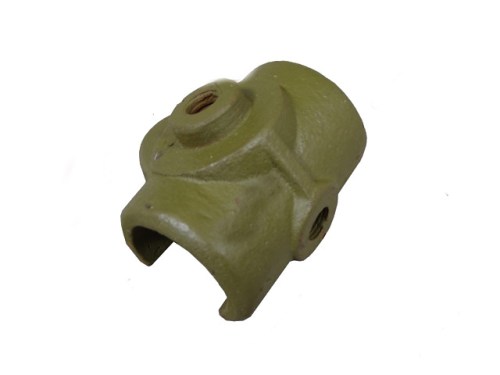

Cast pivot point for mounting the top bows to the side of the body. This late version features a larger opening with 3/8" UNF thread for the thumb screw.
|
Material Cast iron |
Thread size 3/8" UNF |
|
Marking A-2901 |
Per vehicle 2 pieces required |
Features
- Cast with original A-2901 marking
- Large opening for late production models
- 3/8" UNF thread for thumb screw
- Attachment to body side with bolt, split pin and washer
- Interchangeable left or right
★ Correctly marked reproduction part for mounting the canvas top bows.
Installation notes
The pivot point is attached to the body side with a bolt (3/8" x 5/8" UNC), split pin and washer. The top bows slide through this pivot point and are secured with a thumb screw (3/8" UNF thread). 2 pieces required per vehicle.
Compatibility
This late version with 3/8" thread is suitable for later production models. Early Willys MB Slat Grille and VEP models used a small hole variant with smaller opening. Check which version fits your vehicle.
Historical context
The top bow pivot holds the bows in vertical position when the canvas top is fitted, and allows the bows to swing rearward for storage.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
