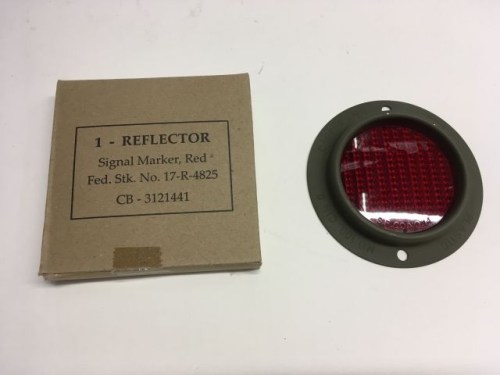

REFLECTOR ROUND TYPE RED C&B

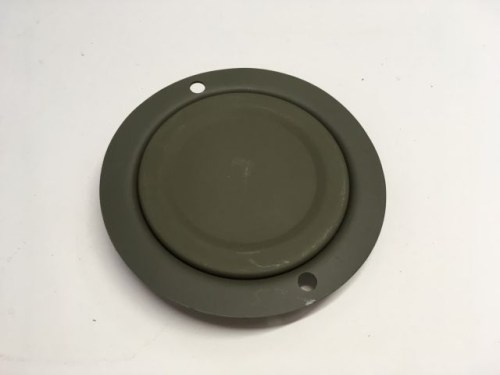

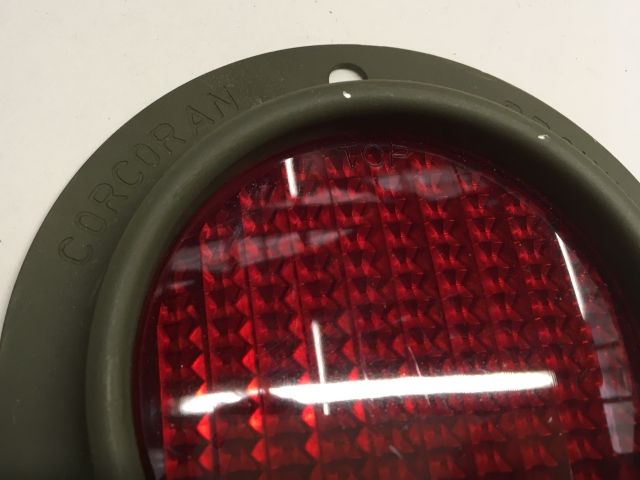

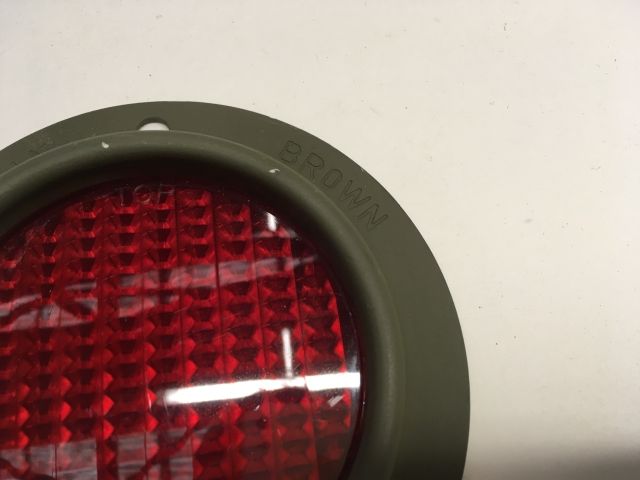

A perfect reproduction of this hard to find part incorporating all the original markings and painted the correct WWII Olive Green colour and fully assembled. Even the backing plate is correctly stamped unlike others on the market today. This reflector was used mainly on Willys MB WWII Jeeps and other GMC and Dodge Trucks of WWII.
Reflector Round Red
Original type with metal housing
Round red reflector in metal housing for mounting on the sides and rear of the body. This reflector was used on multiple WWII military vehicles and increases visibility without electrical connection.
|
Material Metal housing with red reflector lens |
Type Round model |
|
Mounting Two mounting screws |
Mounting points 6 mm (4 inch) centre to centre |
Features
- Passive reflection without electrical connection
- Metal housing with rear cover
- Red reflector lens for rear and sides
- Complete with mounting hardware
- Willys part no. WO-A-1306
- Ford part no. FM-GPW-13380-A
★ Correct reproduction of the original round reflector as used on WWII military vehicles. Increases visibility and safety.
Application
Mounted on the sides of the mudguards and at the rear of the body. Four pieces per vehicle (two on the sides, two at the rear).
Installation notes
Mounting with two screws, mounting distance 101.6 mm (4 inch) centre to centre. The orientation of the lens relative to the mounting holes varied by manufacturer and production period — during restoration the lens can be oriented as on the original vehicle.
Compatibility
This round model was used throughout WWII production. Ford switched to an oval housing around March-May 1943. Different lens manufacturers (Grotelite, Stimsonite, Guide) were used, all with the same Army stock number.
Historical context
Reflectors were a standard safety feature on WWII military vehicles and were produced by multiple suppliers such as Corcoran Brown, Guide and Arrow. All variants met the same military specification and received the same stock number.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB | 1942, 1943, 1944, 1945 |
| Ford GPW | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
| Willys M38 | 1950, 1951, 1952 |
| Willys M38A1 | 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971 |
| CJ series | |
| Jeep CJ-2A | 1945, 1946, 1947, 1948, 1949 |
| Jeep CJ-3A | 1949, 1950, 1951, 1952, 1953 |
| Jeep CJ-3B | 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |
