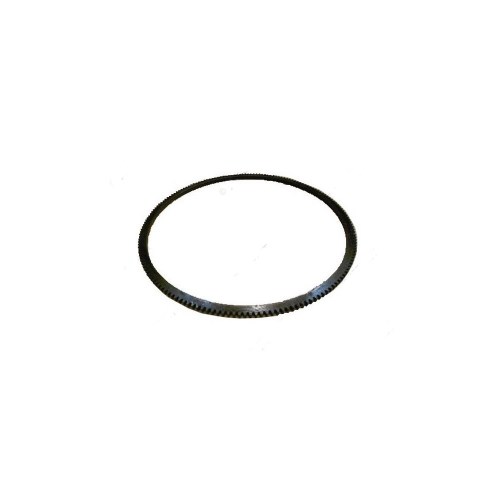

RING FLYWHEEL STARTER DODGE T214
Ø 37 CM
Theets 146
Flywheel starter ring gear
For 146-tooth flywheel
Steel ring gear for the flywheel of the Dodge T214 engine. This ring gear is engaged by the starter motor bendix to crank the engine. Essential component during flywheel overhaul or replacement of worn starter ring gear.
|
Material Hardened steel |
Number of teeth 146 teeth |
|
Application Dodge WC series T214 engine |
Fitting Shrink fit mounting on flywheel |
Features
- 146-tooth ring gear
- For Dodge T214 six-cylinder engine
- Hardened steel construction
- Shrink fit mounting on flywheel
- Replacement component during flywheel overhaul
★ Replacement ring gear for flywheel. Fitting requires heating of the ring gear for shrink fit mounting on the flywheel.
Application
Applicable to Dodge WC series vehicles with T214 engine (230 cu.in./3.8L six-cylinder). The T214 engine flywheel uses a 146-tooth ring gear, which differs from some earlier Dodge models. This ring gear is fitted to the outer circumference of the flywheel via a shrink fit connection.
Installation notes
Fitting requires specialist tools. The ring gear must be heated (thermal expansion) to approximately 200-250°C to be able to slide over the flywheel. On cooling, the ring shrinks and forms a tight fitting connection. Note correct orientation: the chamfered side of the teeth must face towards the starter motor for smooth engagement of the bendix. Check alignment with starter motor bendix after fitting.
Compatibility
Specific to Dodge T214 engine with 146-tooth flywheel. Not interchangeable with earlier Dodge engines using different tooth counts (e.g. T207 with different specification). Note: some late production T214 engines (1960s rebuilds) had different ring gears. Always check the number of teeth on your original ring gear before ordering.
Historical context
The Dodge T214 engine was used in the WC series 3⁄4-ton lorries during and after WWII. The 146-tooth ring gear was a standard component of the flywheel-clutch system on this robust 230 cubic inch six-cylinder engine.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Alle Dodge WC / M-serie | 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
