STAR 15 INCH STENCIL STICKER
STAR 4 INCH : 10.16 CM STAR 10 INCH : 25.40 CM
STAR 4 INCH : 10.16 CMSTAR 6 INCH : 15.24 CM
STAR 20 INCH : 50.80 CM

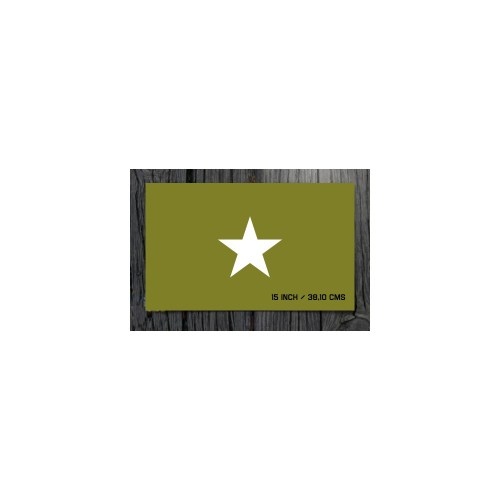

Star stencil 15 inch (381 mm)
For bonnet marking according to AR 850-5
Professional stencil for applying the standard 15 inch (diameter) white star on the bonnet. This size corresponds to the official specifications from Army Regulations 850-5 for jeeps and light vehicles. The stencil was used by units for correctly positioning the national insignia on tactical vehicles.
|
Type Paint stencil |
Diameter 15 inch (381 mm) |
|
Application Bonnet marking |
Period WWII / post-war |
Features
- 15 inch diameter (measured as circle around the five star points)
- According to Army Regulations 850-5 specifications
- Suitable for bonnet of jeeps and light vehicles
- Star positioning: one point towards windscreen, 1.75" from cowl
- Reusable stencil for authentic restorations
★ Authentic star stencil according to original military regulations for correct marking of WWII tactical vehicles.
Application
The 15 inch star was the standard size for the bonnet of jeeps (Willys MB, Ford GPW) and comparable light vehicles during WWII. According to AR 850-5, one point of the star was positioned 1.5 to 1.75 inches from the cowl/dashboard, so that the star remained visible when the windscreen was folded flat onto the bonnet. This marking was applied at unit level (motor pool), not at the factory. Also used on post-war M201 (Hotchkiss) and civilian models for military authenticity.
Installation notes
Position the stencil with one star point facing forward (towards windscreen) at 1.5 to 1.75 inches distance from the cowl/dashboard. Secure the stencil with tape or repositionable adhesive. Apply paint by dabbing with sponge or brush for authentic 'motor pool' finish, or spray in thin layers. Remove stencil immediately after first coat dries to achieve sharp lines.
Compatibility
Please note: the 15" star is NOT the same as the 20" invasion star (with circle) used from Sicily/Normandy onwards. The 15" star is the standard single star without circle as prescribed in AR 850-5. For invasion markings (with white or yellow circle), a 20" stencil is required. The diameter always refers to the imaginary circle around the five points of the star.
Historical context
The white five-pointed star was introduced in August 1942 as the national insignia for all American tactical vehicles, replacing earlier red-white-blue variants. The standard 15 inch size for jeep bonnets was established in Army Regulations 850-5 and remained in use well after WWII.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |
| Dodge WC54 ambulance | 1942, 1943, 1944 |
| Dodge WC55 gun motor carriage | 1942, 1943 |
| Dodge WC56 command car | 1942, 1943, 1944, 1945 |
| Dodge WC57 command car (winch) | 1942, 1943, 1944, 1945 |
