🧰 CC924240 – Brake Tube Rear Axle Right (4x4)
Steel brake line for the right side of the rear axle on Dodge WC 4x4 vehicles. Connects the flexible brake hose to the right rear wheel cylinder. Original flare fittings and routing per TM 9-803.
| Part Number | CC924240 |
| Type | Steel brake tube – rear axle right |
| Material | Coated steel with flare fittings |

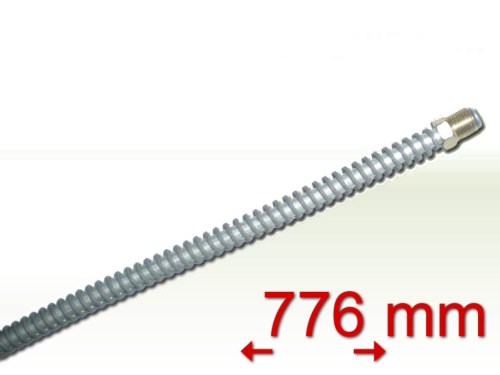

| Length | 776 mm |
| Application | Dodge WC 51 / WC 52 / WC 56 / WC 57 – 4x4 |
🔧 Replace if corroded or leaking. Fits original 3/8"-24 flare fittings without modification.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |
| Dodge WC54 ambulance | 1942, 1943, 1944 |
| Dodge WC55 gun motor carriage | 1942, 1943 |
| Dodge WC57 command car (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC58 radio command car | 1942, 1943, 1944, 1945 |

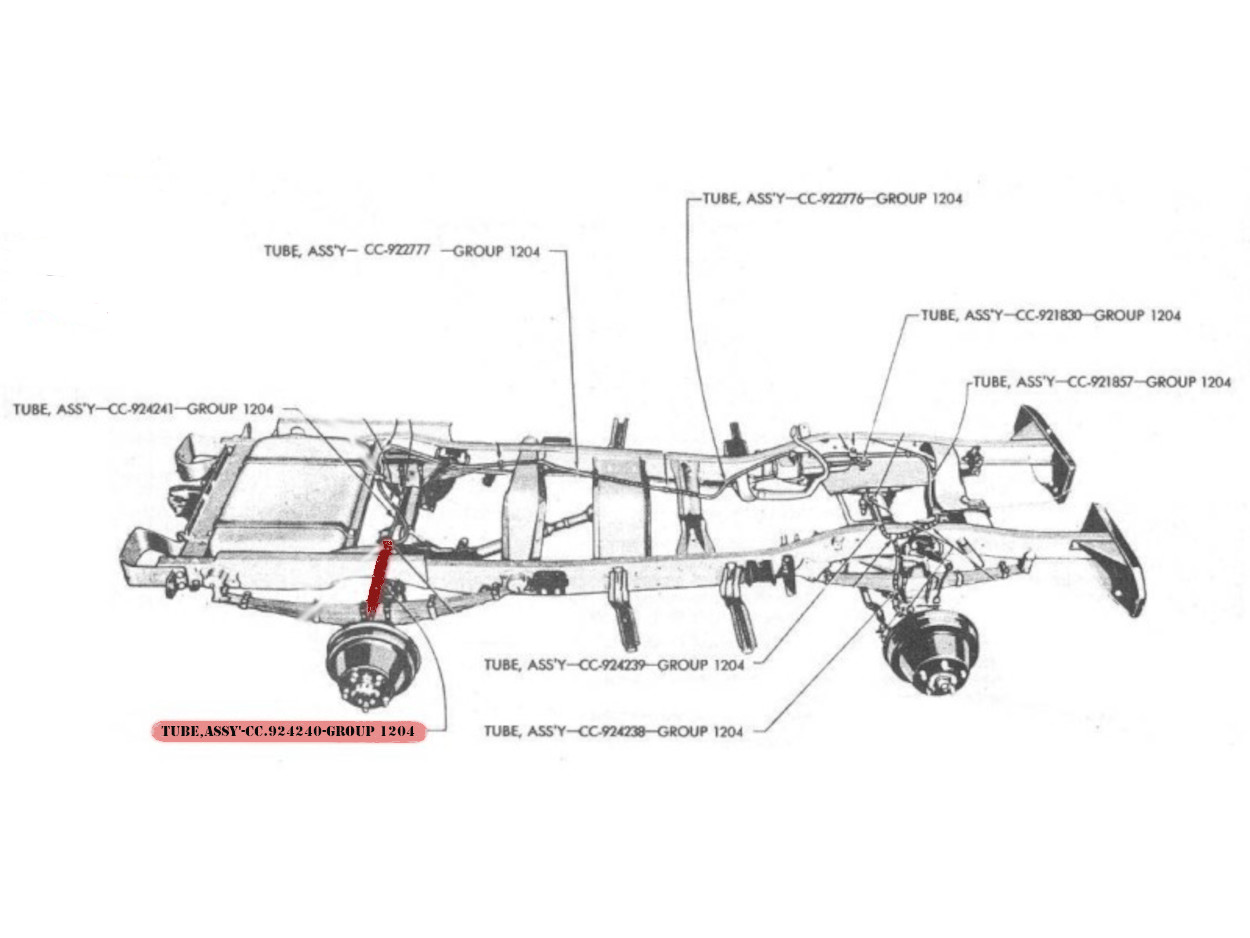

📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
