TUBE BRAKE TO REAR 4X4
WC 51/52/55/56/57
🧰 CC922777 – Brake Tube to Rear Axle (4x4)

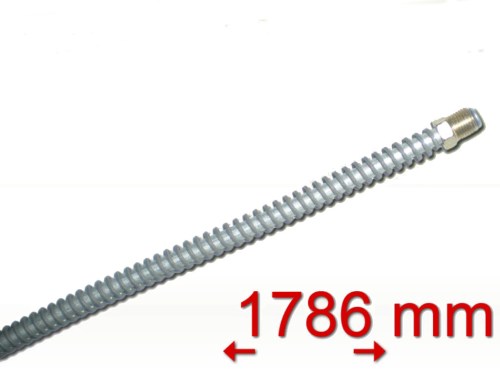

Steel brake line running from the brake union to the rear axle on Dodge WC 4x4 vehicles. It connects the front brake system to the rear brakes via a central tube.
| Part Number | CC922777 |
| Type | Main brake tube – union to rear axle |
| Material | Coated steel with flare fittings |
| Length | 1786 mm |
| Fitting | 7/16"-24 flare |
| Application | Dodge WC 51 / WC 52 / WC 56 / WC 57 – 4x4 |
🔧 TM 9-803 routing: runs along the left side of the chassis to the rear axle junction.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |

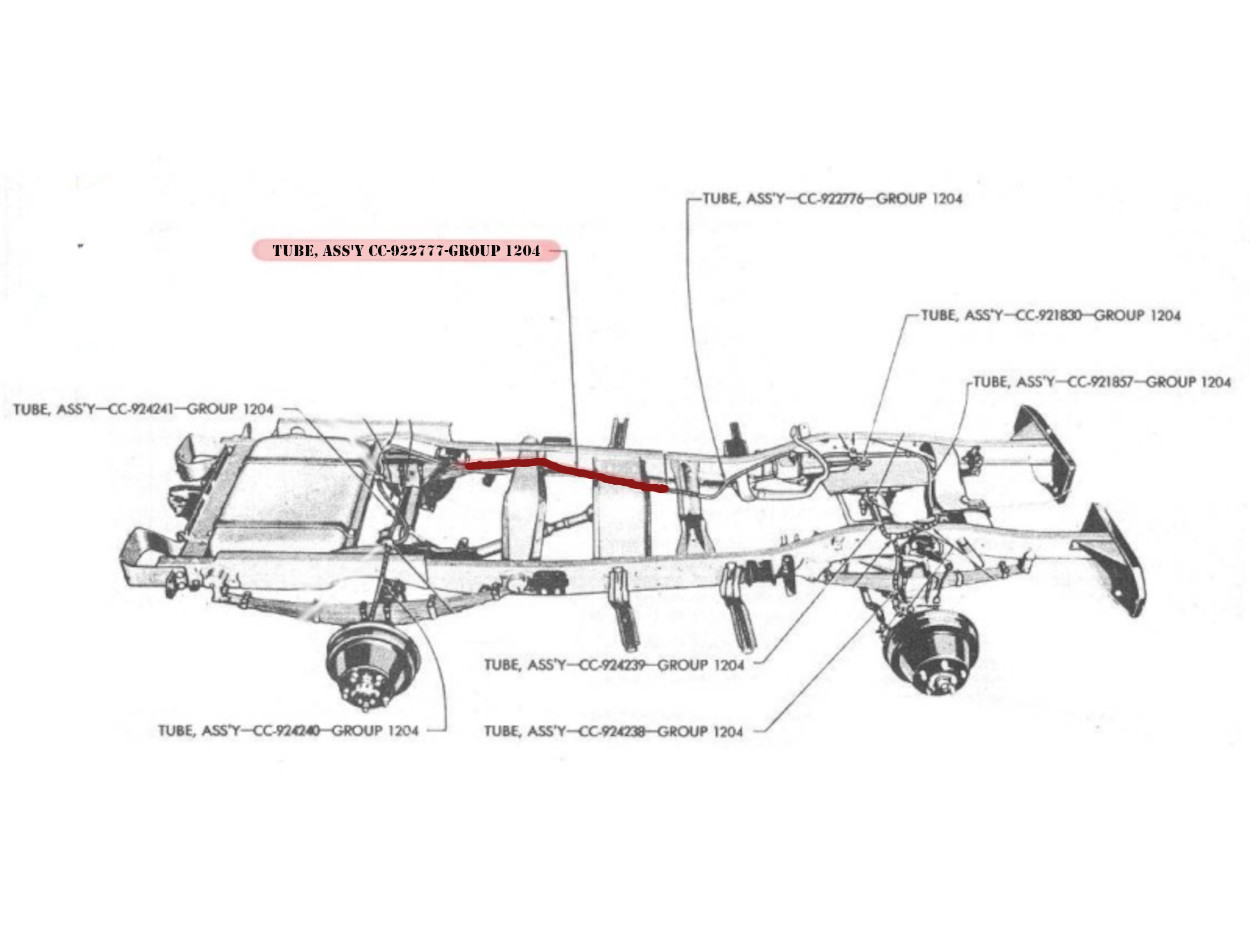

📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
