WASHER THRUST INTERM GEAR DIA 19MM
WOA1000
Thrust washer for intermediate gear
For 3/4" intermediate shaft, Dana 18 transfer case

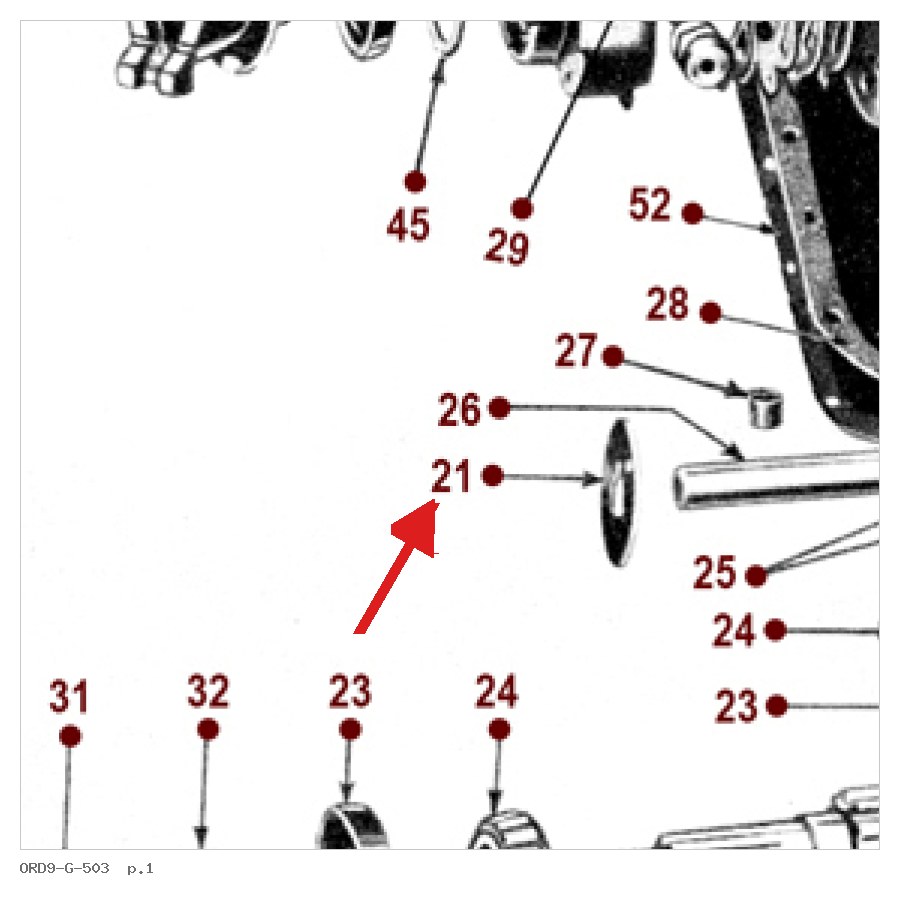

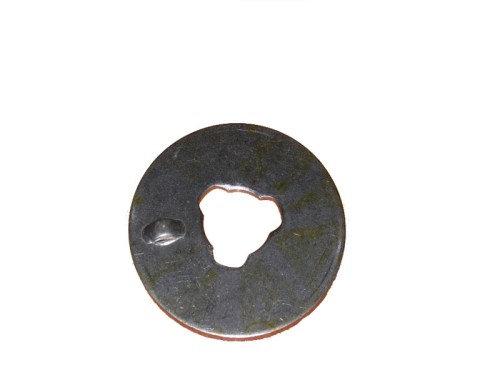

Steel thrust washer for the intermediate gear in the Dana 18 transfer case. This component prevents axial play and ensures correct positioning of the intermediate gear on the 3/4" shaft.
|
Material Steel with bronze backing |
Diameter Ø19 mm (3/4") |
|
Application Dana 18 transfer case |
Type Early type (3/4" shaft) |
Features
- Suitable for 3/4" intermediate shaft
- Prevents axial play of intermediate gear
- Replacement part for A-1000
- To be used with caged roller bearings A-924
- Sold individually (2 pieces required per transfer case)
★ Precision component for correct axial positioning of the intermediate gear. Essential for quiet operation and long service life of the transfer case.
Application
For Dana 18 transfer cases with 3/4" (19mm) intermediate shaft. This configuration was used in early versions until approximately 1946. These were later replaced by 1-1/8" (1946-1953) and 1-1/4" (1953-1971) shafts with different thrust washers.
Installation notes
Fit one thrust washer on each side of the intermediate gear. Check axial play after assembly — it should be minimal but gear must rotate freely. Use assembly grease to hold roller bearings in place during assembly. Ensure the lip of the washer locates correctly in the case recess to prevent rotation.
Compatibility
ONLY for Dana 18 with 3/4" intermediate shaft. NOT compatible with later Dana 18 versions with 1-1/8" shaft (part 642191) or 1-1/4" shaft (part 809296). Measure the diameter of the intermediate shaft to ensure the correct size.
Historical context
The Dana 18 transfer case with 3/4" intermediate shaft was used in the original WWII military jeeps. This early-type configuration was later superseded by stronger versions with thicker shafts for civilian and post-war models.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Willys MB (early) | 1941, 1942 |
| Willys MB | 1942, 1943, 1944, 1945 |
| Hotchkiss M201 | 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966 |
