ARM PITMAN 4X4
Pitman Arm 4x4
Steering arm for steering system

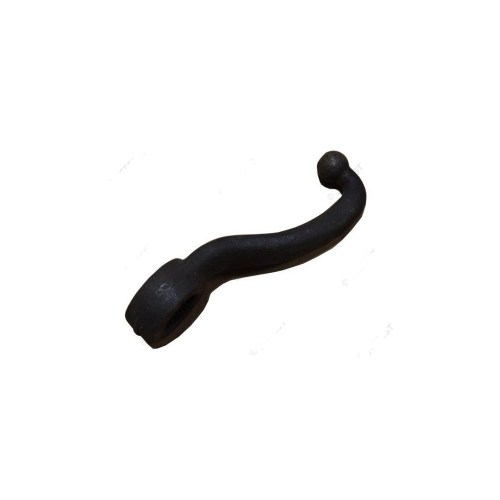

Pitman arm for the steering system of four-wheel drive Dodge vehicles. This component connects the steering box to the drag link and converts the rotary motion of the steering column into linear motion for wheel steering.
|
Application Steering system |
Drive 4x4 |
|
Manufacturer Dodge |
Function Steering box - drag link connection |
Features
- Suitable for 4x4 steering systems
- Connects steering box to drag link
- Conversion of rotary to linear motion
- Essential steering component
- Robust construction
★ Essential steering component for reliable and accurate wheel steering on four-wheel drive vehicles.
Installation notes
The pitman arm must be fitted with the steering system in the centre position. Use a suitable pitman arm puller for removal. Check the spline fit before tightening the nut. Tighten to the specified torque and verify that the drag link can move freely without contact with the chassis.
Compatibility
Before ordering, verify that the spline type and dimensions match your steering box. Different production years and models may have different versions.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Dodge WC51 weapons carrier | 1942, 1943, 1944, 1945 |
| Dodge WC52 weapons carrier (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC53 carryall | 1942, 1943, 1944 |
| Dodge WC54 ambulance | 1942, 1943, 1944 |
| Dodge WC55 gun motor carriage | 1942, 1943 |
| Dodge WC56 command car | 1942, 1943, 1944, 1945 |
| Dodge WC57 command car (winch) | 1942, 1943, 1944, 1945 |
| Dodge WC58 radio command car | 1942, 1943, 1944, 1945 |
| Dodge WC64 KD ambulance | 1945 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
