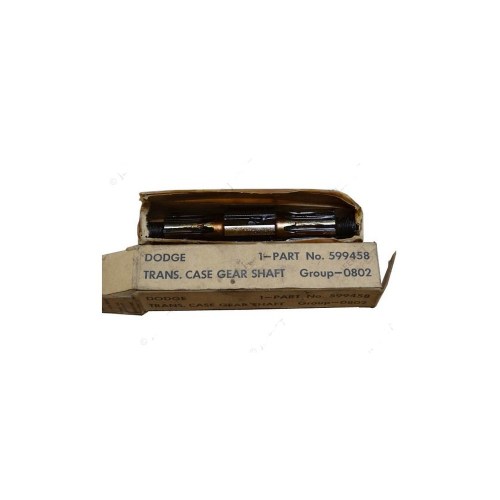

SHAFT DRIVEN TRANSFER
Driven shaft transfer case
For single-speed 4x4 transfer case
Driven shaft for the transfer case of WWII Dodge WC 4x4 vehicles. This component is part of the internal transmission within the transfer case and ensures power distribution between front and rear axles.
|
Application Transfer case 4x4 |
Type Driven shaft |
|
Material Steel |
Design Adaptation part |
Features
- Driven transmission shaft for transfer case
- For single-speed transfer case systems
- Internal power distribution component
- Replacement part for renovation
- Suitable for restoration and overhaul
★ Essential component for the internal operation of the transfer case. During transfer case overhaul, inspection and possible replacement of the driven shaft is of great importance for quiet and reliable operation.
Installation notes
Fitting requires complete disassembly of the transfer case. Check the associated bearings, thrust washers and spacers during assembly. Apply gearbox oil (SAE 90) after assembly according to specification.
Compatibility
Please note: this is an adaptation part (category ADAPTATION). Check the exact specification of your transfer case before ordering. Dodge WC vehicles had different transfer case versions depending on year of manufacture and type (1/2 ton, 3/4 ton, 6x6).
Historical context
The single-speed transfer cases of Dodge WC vehicles were manufactured by New Process Gear and formed a robust system for power transmission to both axles.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Dodge | |
| Alle Dodge WC / M-serie | 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968 |
📐 Diagrams & technical drawings
From the original Technical Manual TM 9-808 — Technical Manual — only for Dodge ¾-ton 4×4 (WC series)
