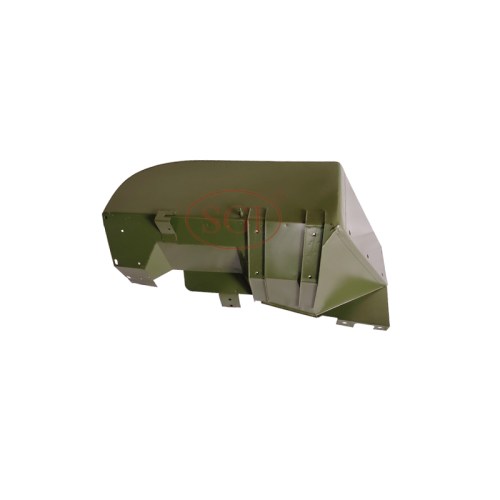

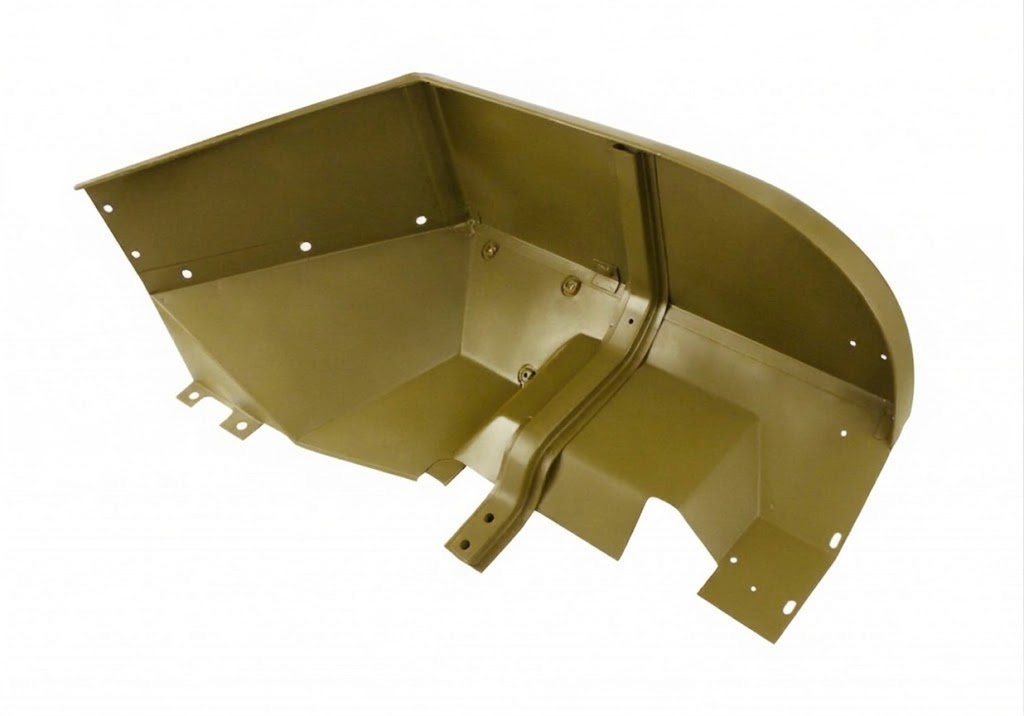

SGI FRONT FENDER ASSY. RH GPW
Front Wing Right Ford GPW
Pressed steel, complete with reinforcement gusset
Reproduction front wing for the right-hand side of the Ford GPW, suitable for restoration of military jeeps from the 1941-1945 period. This wing is manufactured to original Ford specifications with characteristic details such as the reinforcement gusset in the rear corner and two mounting holes at the running board.
|
Material Pressed steel |
Position Right (RH) |
|
Vehicle Ford GPW 1941-1945 |
Type Complete with reinforcement gusset |
Features
- Pressed steel to original Ford specifications

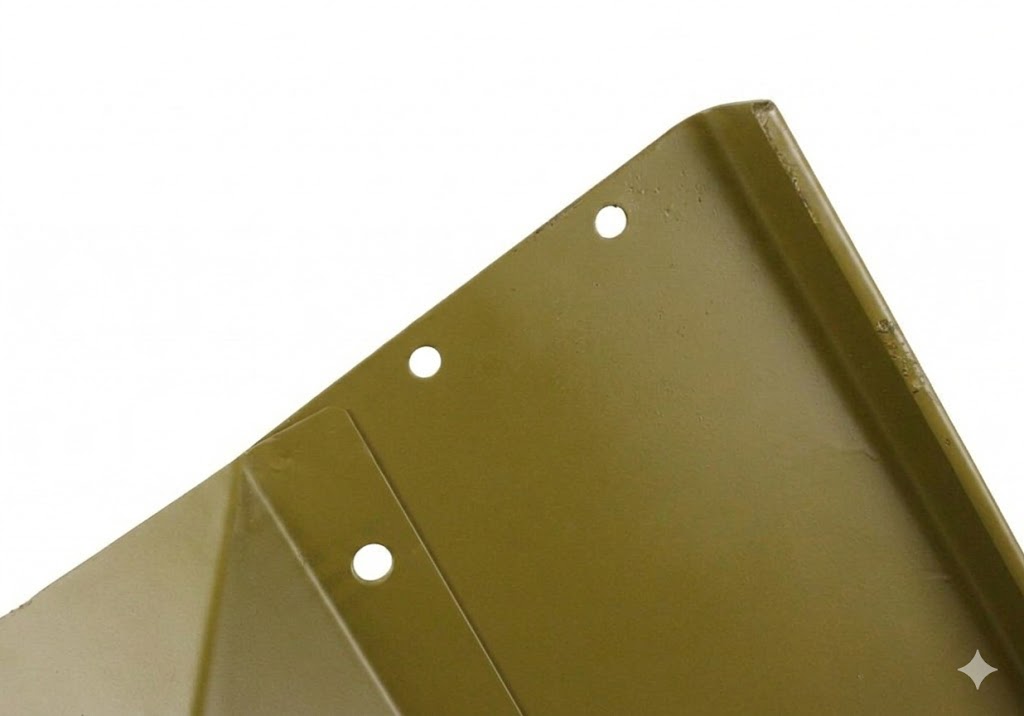

- Reinforcement gusset in rear upper corner
- Two mounting holes at running board (GPW characteristic)
- Modified edge with visible pressing lines (Ford characteristic)
- One-piece construction around battery recess
★ Reproduction manufactured to original Ford GPW specifications with all characteristic details for an authentic restoration.
Application
Suitable for Ford GPW military jeeps produced between 1941 and 1945. Also fits Hotchkiss M201 vehicles that used Ford-type wings.
Installation notes
Mounting is done with two bolts at the running board (GPW-specific, unlike MB with one bolt). Ensure correct placement of the reinforcement gusset at the rear. Check that any holes for fuel line brackets are correctly positioned (specific to right-hand side GPW).
Compatibility
This is a Ford GPW-specific wing. Differs from Willys MB by: three-piece reinforcement gusset in rear corner, modified edge with visible pressing lines, two mounting holes at running board (instead of one), and one-piece construction around battery recess (MB has two-piece construction). Late production GPW wings may be without F marking, but retain the one-piece battery recess as identification point.
Historical context
Ford produced approximately 277,878 GPW jeeps between 1941 and 1945 under licence from Willys-Overland. The Ford wings were distinguished by specific production characteristics such as the reinforcement gusset and modified edges, resulting from Ford's own pressing process.
This description was generated automatically. Unsure about fitment? Contact us at info@willys.be.
⚠ Spotted an error in this description? Report it to info@willys.be
This part is intended for the restoration of historic military vehicles. Fitting, aligning, deburring or reworking is part of that work and is inherent to the nature of these goods. Dimensional variation also exists between original vehicles.
Installation requires technical knowledge of the vehicle. Unsure whether this part suits your version? Ask us before purchase at info@willys.be.
This part fits:
| Model | Years |
|---|---|
| Military jeeps | |
| Ford GPW | 1942, 1943, 1944, 1945 |
Body Bundel GPW
📐 Diagrams & technical drawings
From the original Technical Manual TM 10-1513 — Maintenance Manual — only for Willys MB / Ford GPW (1942)
